AIRBLADE® DRYER Signature ® Series
Installation

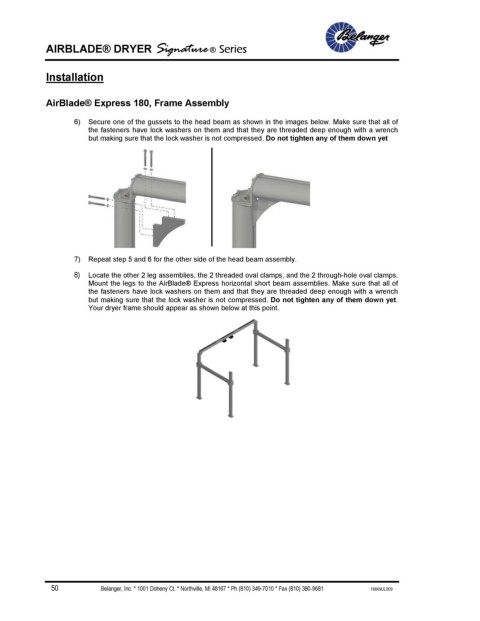

AirBlade® Express 180, Frame Assembly
6) Secure one of the gussets to the head beam as shown in the images below. Make sure that all of
the fasteners have lock washers on them and that they are threaded deep enough with a wrench
but making sure that the lock washer is not compressed. Do not tighten any of them down yet
7) Repeat step 5 and 6 for the other side of the head beam assembly.
8) Locate the other 2 leg assemblies, the 2 threaded oval clamps, and the 2 through-hole oval clamps.
Mount the legs to the AirBlade® Express horizontal short beam assemblies. Make sure that all of
the fasteners have lock washers on them and that they are threaded deep enough with a wrench
but making sure that the lock washer is not compressed. Do not tighten any of them down yet.
Your dryer frame should appear as shown below at this point.
