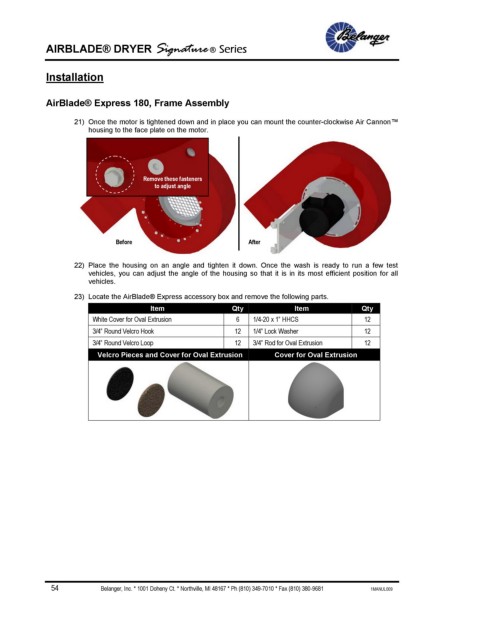

AIRBLADE® DRYER Signature ® Series
Installation
AirBlade® Express 180, Frame Assembly
21) Once the motor is tightened down and in place you can mount the counter-clockwise Air Cannon™
housing to the face plate on the motor.
Remove these fasteners
to adjust angle
Before After
22) Place the housing on an angle and tighten it down. Once the wash is ready to run a few test
vehicles, you can adjust the angle of the housing so that it is in its most efficient position for all
vehicles.
23) Locate the AirBlade® Express accessory box and remove the following parts.
Item Qty Item Qty
White Cover for Oval Extrusion 6 1/4-20 x 1” HHCS 12
3/4” Round Velcro Hook 12 1/4” Lock Washer 12
3/4” Round Velcro Loop 12 3/4” Rod for Oval Extrusion 12
Velcro Pieces and Cover for Oval Extrusion Cover for Oval Extrusion
