AIRBLADE® DRYER Signature ® Series
Installation

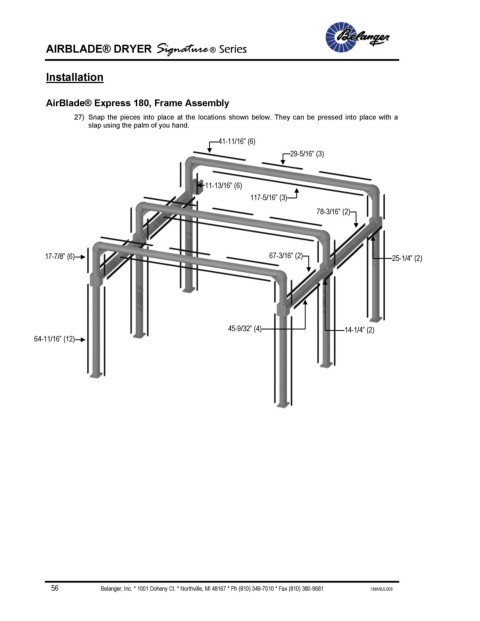

AirBlade® Express 180, Frame Assembly
27) Snap the pieces into place at the locations shown below. They can be pressed into place with a
slap using the palm of you hand.
41-11/16” (6)
29-5/16” (3)
11-13/16” (6)
117-5/16” (3)
78-3/16” (2)
17-7/8” (6) 67-3/16” (2) 25-1/4” (2)
45-9/32” (4) 14-1/4” (2)
64-11/16” (12)
