AIRBLADE® DRYER Signature ® Series

Installation

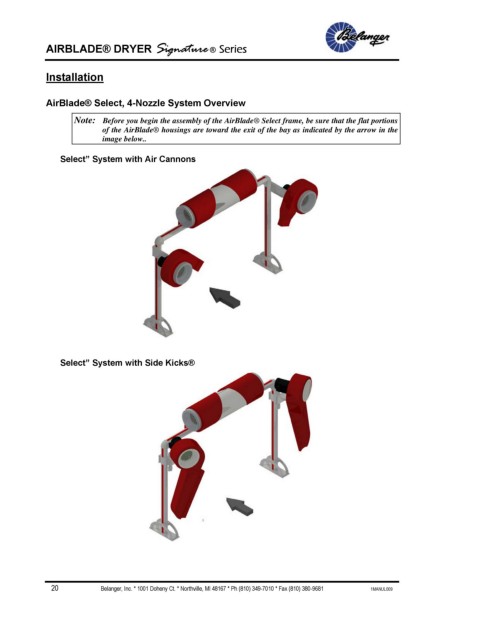

AirBlade® Select, 4-Nozzle System Overview
Note: Before you begin the assembly of the AirBlade® Select frame, be sure that the flat portions
of the AirBlade® housings are toward the exit of the bay as indicated by the arrow in the
image below..

Select” System with Air Cannons

Select” System with Side Kicks®

20 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (810) 349-7010 * Fax (810) 380-9681 1MANUL009
