S H O WE R S Y ST EM

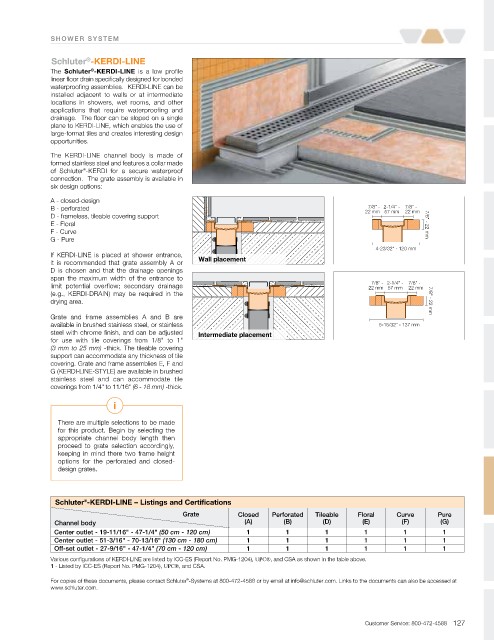

Schluter -KERDI-LINE
®
®
The Schluter -KERDI-LINE is a low profile
linear floor drain specifically designed for bonded
waterproofing assemblies. KERDI-LINE can be
installed adjacent to walls or at intermediate
locations in showers, wet rooms, and other
applications that require waterproofing and
drainage. The floor can be sloped on a single
plane to KERDI-LINE, which enables the use of
large-format tiles and creates interesting design
opportunities.

The KERDI-LINE channel body is made of
formed stainless steel and features a collar made
®
of Schluter -KERDI for a secure waterproof
connection. The grate assembly is available in
six design options:
A - closed-design
7/8" -
B - perforated 22 mm 2-1/4" - 7/8" -
57 mm
22 mm
D - frameless, tileable covering support
E - Floral 7/8" - 22 mm
F - Curve
G - Pure
4-23/32" - 120 mm
If KERDI-LINE is placed at shower entrance, Wall placement
it is recommended that grate assembly A or
D is chosen and that the drainage openings
span the maximum width of the entrance to 7/8" - 2-1/4" - 7/8" -
limit potential overflow; secondary drainage 22 mm 57 mm 22 mm
(e.g., KERDI-DRAIN) may be required in the
drying area. 7/8" - 22 mm
Grate and frame assemblies A and B are
available in brushed stainless steel, or stainless 5-15/32" - 137 mm
steel with chrome finish, and can be adjusted Intermediate placement
for use with tile coverings from 1/8" to 1"
(3 mm to 25 mm) -thick. The tileable covering
support can accommodate any thickness of tile
covering. Grate and frame assemblies E, F and
G (KERDI-LINE-STYLE) are available in brushed
stainless steel and can accommodate tile
coverings from 1/4" to 11/16" (6 - 18 mm) -thick.

i

There are multiple selections to be made
for this product. Begin by selecting the
appropriate channel body length then
proceed to grate selection accordingly,
keeping in mind there two frame height
options for the perforated and closed-
design grates.

Schluter -KERDI-LINE – Listings and Certifications
®
Grate Closed Perforated Tileable Floral Curve Pure
Channel body (A) (B) (D) (E) (F) (G)
Center outlet - 19-11/16" - 47-1/4" (50 cm - 120 cm) 1 1 1 1 1 1
Center outlet - 51-3/16" - 70-13/16" (130 cm - 180 cm) 1 1 1 1 1 1
Off-set outlet - 27-9/16" - 47-1/4" (70 cm - 120 cm) 1 1 1 1 1 1
Various configurations of KERDI-LINE are listed by ICC-ES (Report No. PMG-1204), UPC®, and CSA as shown in the table above.
1 - Listed by ICC-ES (Report No. PMG-1204), UPC®, and CSA.
®
For copies of these documents, please contact Schluter -Systems at 800-472-4588 or by email at info@schluter.com. Links to the documents can also be accessed at
www.schluter.com.
