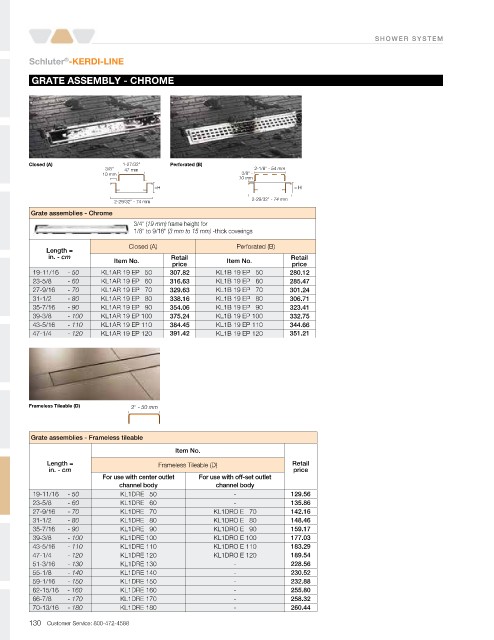

Page 132 - schluter 2019 Price List DJC final(1)_Neat

SHOWER S Y S TEM

®
Schluter -KERDI-LINE
GRATE ASSEMBLY - CHROME

Closed (A) 1-27/32" Perforated (B)
3/8" 47 mm 2-1/8" - 54 mm
10 mm 3/8" -
10 mm
=H = H
2-29/32" - 74 mm
2-29/32" - 74 mm
Grate assemblies - Chrome
3/4" (19 mm) frame height for
1/8" to 9/16" (3 mm to 15 mm) -thick coverings

Closed (A) Perforated (B)
Length =
in. - cm Retail Retail
Item No. Item No.
price price
19-11/16 - 50 KL1AR 19 EP 50 307.82 KL1B 19 EP 50 280.12
23-5/8 - 60 KL1AR 19 EP 60 316.63 KL1B 19 EP 60 285.47
27-9/16 - 70 KL1AR 19 EP 70 329.63 KL1B 19 EP 70 301.24
31-1/2 - 80 KL1AR 19 EP 80 338.16 KL1B 19 EP 80 306.71
35-7/16 - 90 KL1AR 19 EP 90 354.06 KL1B 19 EP 90 323.41
39-3/8 - 100 KL1AR 19 EP 100 375.24 KL1B 19 EP 100 332.75
43-5/16 - 110 KL1AR 19 EP 110 384.45 KL1B 19 EP 110 344.66
47-1/4 - 120 KL1AR 19 EP 120 391.42 KL1B 19 EP 120 351.21

Frameless Tileable (D) 2" - 50 mm

Grate assemblies - Frameless tileable
Item No.
Length = Frameless Tileable (D) Retail
in. - cm price
For use with center outlet For use with off-set outlet
channel body channel body
19-11/16 - 50 KL1DRE 50 - 129.56
23-5/8 - 60 KL1DRE 60 - 135.86
27-9/16 - 70 KL1DRE 70 KL1DRO E 70 142.16
31-1/2 - 80 KL1DRE 80 KL1DRO E 80 148.46
35-7/16 - 90 KL1DRE 90 KL1DRO E 90 159.17
39-3/8 - 100 KL1DRE 100 KL1DRO E 100 177.03
43-5/16 - 110 KL1DRE 110 KL1DRO E 110 183.29
47-1/4 - 120 KL1DRE 120 KL1DRO E 120 189.54
51-3/16 - 130 KL1DRE 130 - 228.56
55-1/8 - 140 KL1DRE 140 - 230.52
59-1/16 - 150 KL1DRE 150 - 232.88
62-15/16 - 160 KL1DRE 160 - 255.80
66-7/8 - 170 KL1DRE 170 - 258.32
70-13/16 - 180 KL1DRE 180 - 260.44
130 Customer Service: 800-472-4588
