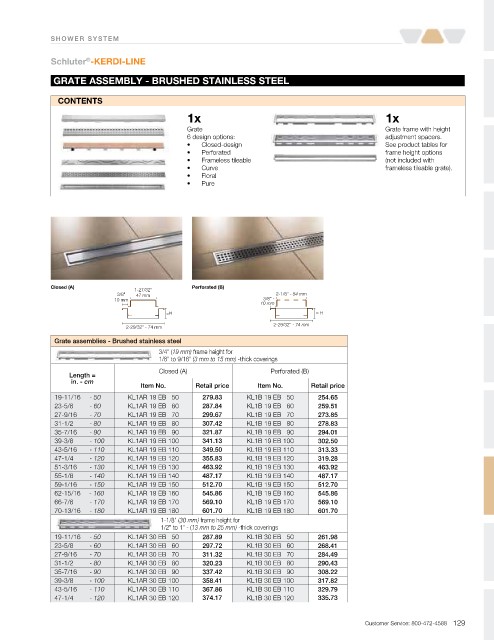

S H O WE R S Y ST EM

®
Schluter -KERDI-LINE
GRATE ASSEMBLY - BRUSHED STAINLESS STEEL

CONTENTS
1x 1x

Grate Grate frame with height
6 design options: adjustment spacers.
• Closed-design See product tables for
• Perforated frame height options
• Frameless tileable (not included with
• Curve frameless tileable grate).
• Floral
• Pure

Closed (A) Perforated (B)
1-27/32"
3/8" 47 mm 2-1/8" - 54 mm
10 mm 3/8" -
10 mm
=H = H
2-29/32" - 74 mm 2-29/32" - 74 mm
Grate assemblies - Brushed stainless steel
3/4" (19 mm) frame height for
1/8" to 9/16" (3 mm to 15 mm) -thick coverings
Closed (A) Perforated (B)
Length =
in. - cm
Item No. Retail price Item No. Retail price
19-11/16 - 50 KL1AR 19 EB 50 279.83 KL1B 19 EB 50 254.65
23-5/8 - 60 KL1AR 19 EB 60 287.84 KL1B 19 EB 60 259.51
27-9/16 - 70 KL1AR 19 EB 70 299.67 KL1B 19 EB 70 273.85
31-1/2 - 80 KL1AR 19 EB 80 307.42 KL1B 19 EB 80 278.83
35-7/16 - 90 KL1AR 19 EB 90 321.87 KL1B 19 EB 90 294.01
39-3/8 - 100 KL1AR 19 EB 100 341.13 KL1B 19 EB 100 302.50
43-5/16 - 110 KL1AR 19 EB 110 349.50 KL1B 19 EB 110 313.33
47-1/4 - 120 KL1AR 19 EB 120 355.83 KL1B 19 EB 120 319.28
51-3/16 - 130 KL1AR 19 EB 130 463.92 KL1B 19 EB 130 463.92
55-1/8 - 140 KL1AR 19 EB 140 487.17 KL1B 19 EB 140 487.17
59-1/16 - 150 KL1AR 19 EB 150 512.70 KL1B 19 EB 150 512.70
62-15/16 - 160 KL1AR 19 EB 160 545.86 KL1B 19 EB 160 545.86
66-7/8 - 170 KL1AR 19 EB 170 569.10 KL1B 19 EB 170 569.10
70-13/16 - 180 KL1AR 19 EB 180 601.70 KL1B 19 EB 180 601.70
1-1/8" (30 mm) frame height for
1/2" to 1" - (13 mm to 25 mm) -thick coverings
19-11/16 - 50 KL1AR 30 EB 50 287.89 KL1B 30 EB 50 261.98
23-5/8 - 60 KL1AR 30 EB 60 297.72 KL1B 30 EB 60 268.41
27-9/16 - 70 KL1AR 30 EB 70 311.32 KL1B 30 EB 70 284.49
31-1/2 - 80 KL1AR 30 EB 80 320.23 KL1B 30 EB 80 290.43
35-7/16 - 90 KL1AR 30 EB 90 337.42 KL1B 30 EB 90 308.22
39-3/8 - 100 KL1AR 30 EB 100 358.41 KL1B 30 EB 100 317.82
43-5/16 - 110 KL1AR 30 EB 110 367.86 KL1B 30 EB 110 329.79
47-1/4 - 120 KL1AR 30 EB 120 374.17 KL1B 30 EB 120 335.73
