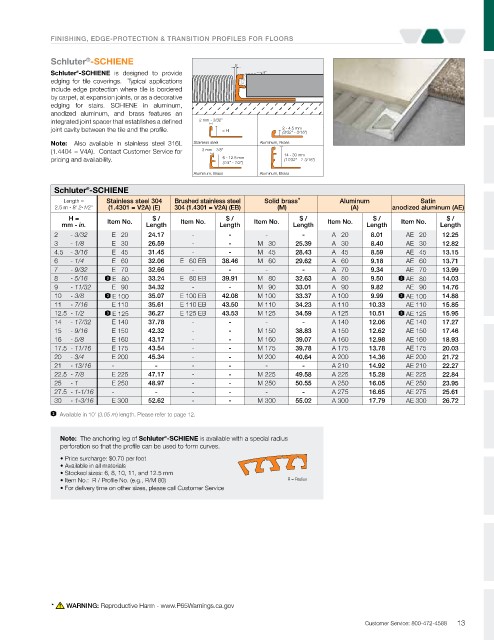

Page 15 - schluter 2019 Price List DJC final(1)_Neat

FINISHING, EDGE-PROTECTION & TRANSITION PROFILES FOR FLOORS

®
Schluter -SCHIENE
®
Schluter -SCHIENE is designed to provide
edging for tile coverings. Typical applications
include edge protection where tile is bordered
by carpet, at expansion joints, or as a decorative
edging for stairs. SCHIENE in aluminum,
anodized aluminum, and brass features an
integrated joint spacer that establishes a defined 2 mm - 3/32"
joint cavity between the tile and the profile. = H 2 - 4.5 mm
(3/32" - 3/16")
Note: Also available in stainless steel 316L Stainless steel Aluminum, Brass
(1.4404 = V4A). Contact Customer Service for 3 mm - 1/8" 14 - 30 mm
pricing and availability. 6 - 12.5 mm (17/32" - 1-3/16")
(1/4" - 1/2")
Aluminum, Brass Aluminum, Brass

®
Schluter -SCHIENE
Length = Stainless steel 304 Brushed stainless steel Solid brass * Aluminum Satin
2.5 m - 8' 2-1/2" (1.4301 = V2A) (E) 304 (1.4301 = V2A) (EB) (M) (A) anodized aluminum (AE)
H = $ / $ / $ / $ / $ /
mm - in. Item No. Length Item No. Length Item No. Length Item No. Length Item No. Length
2 - 3/32 E 20 24.17 - - - - A 20 8.01 AE 20 12.25
3 - 1/8 E 30 26.59 - - M 30 25.39 A 30 8.40 AE 30 12.82
4.5 - 3/16 E 45 31.45 - - M 45 28.43 A 45 8.59 AE 45 13.15
6 - 1/4 E 60 32.06 E 60 EB 38.46 M 60 29.62 A 60 9.18 AE 60 13.71
7 - 9/32 E 70 32.66 - - - - A 70 9.34 AE 70 13.99
8 - 5/16 3 E 80 33.24 E 80 EB 39.91 M 80 32.63 A 80 9.50 3 AE 80 14.03
9 - 11/32 E 90 34.32 - - M 90 33.01 A 90 9.82 AE 90 14.76
10 - 3/8 3 E 100 35.07 E 100 EB 42.08 M 100 33.37 A 100 9.99 3 AE 100 14.88
11 - 7/16 E 110 35.61 E 110 EB 43.50 M 110 34.23 A 110 10.33 AE 110 15.85
12.5 - 1/2 3 E 125 36.27 E 125 EB 43.53 M 125 34.59 A 125 10.51 3 AE 125 15.95
14 - 17/32 E 140 37.78 - - - - A 140 12.06 AE 140 17.27
15 - 9/16 E 150 42.32 - - M 150 38.83 A 150 12.62 AE 150 17.46
16 - 5/8 E 160 43.17 - - M 160 39.07 A 160 12.98 AE 160 18.93
17.5 - 11/16 E 175 43.54 - - M 175 39.78 A 175 13.78 AE 175 20.03
20 - 3/4 E 200 45.34 - - M 200 40.64 A 200 14.36 AE 200 21.72
21 - 13/16 - - - - - - A 210 14.92 AE 210 22.27
22.5 - 7/8 E 225 47.17 - - M 225 49.58 A 225 15.28 AE 225 22.84
25 - 1 E 250 48.97 - - M 250 50.55 A 250 16.05 AE 250 23.95
27.5 - 1-1/16 - - - - - - A 275 16.65 AE 275 25.61
30 - 1-3/16 E 300 52.62 - - M 300 55.02 A 300 17.79 AE 300 26.72

3 Available in 10' (3.05 m) length. Please refer to page 12.

Note: The anchoring leg of Schluter -SCHIENE is available with a special radius
®
perforation so that the profile can be used to form curves.
• Price surcharge: $0.70 per foot
• Available in all materials
• Stocked sizes: 6, 8, 10, 11, and 12.5 mm
• Item No.: R / Profile No. (e.g., R/M 80) R = Radius
• For delivery time on other sizes, please call Customer Service

* WARNING: Reproductive Harm - www.P65Warnings.ca.gov

Customer Service: 800-472-4588 13
