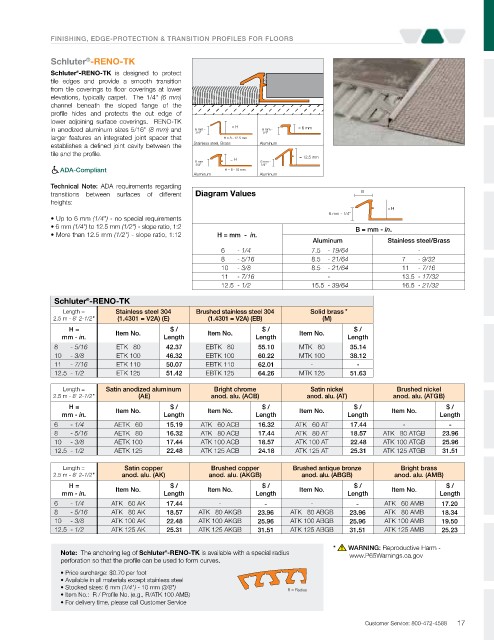

Page 19 - schluter 2019 Price List DJC final(1)_Neat

FINISHING, EDGE-PROTECTION & TRANSITION PROFILES FOR FLOORS

®
Schluter -RENO-TK
®
Schluter -RENO-TK is designed to protect
tile edges and provide a smooth transition
from tile coverings to floor coverings at lower
elevations, typically carpet. The 1/4" (6 mm)
channel beneath the sloped flange of the
profile hides and protects the cut edge of
lower adjoining surface coverings. RENO-TK
in anodized aluminum sizes 5/16" (8 mm) and 6 mm - = H 6 mm - = 6 mm
1/4" 1/4"
larger features an integrated joint spacer that H = 8 - 12.5 mm
establishes a defined joint cavity between the Stainless steel, Brass Aluminum
tile and the profile.
= H = 12.5 mm
6 mm - 6 mm -
1/4" 1/4"
ADA-Compliant H = 8 - 10 mm
Aluminum Aluminum
Technical Note: ADA requirements regarding
transitions between surfaces of different Diagram Values B
heights:
= H
6 mm - 1/4"
• Up to 6 mm (1/4") - no special requirements
• 6 mm (1/4") to 12.5 mm (1/2") - slope ratio, 1:2 B = mm - in.
• More than 12.5 mm (1/2") - slope ratio, 1:12 H = mm - in.
Aluminum Stainless steel/Brass
6 - 1/4 7.5 - 19/64 -
8 - 5/16 8.5 - 21/64 7 - 9/32
10 - 3/8 8.5 - 21/64 11 - 7/16
11 - 7/16 - 13.5 - 17/32
12.5 - 1/2 15.5 - 39/64 16.5 - 21/32
Schluter -RENO-TK
®
Length = Stainless steel 304 Brushed stainless steel 304 Solid brass *
2.5 m - 8' 2-1/2" (1.4301 = V2A) (E) (1.4301 = V2A) (EB) (M)
H = $ / $ / $ /
mm - in. Item No. Length Item No. Length Item No. Length
8 - 5/16 ETK 80 42.37 EBTK 80 55.10 MTK 80 35.14
10 - 3/8 ETK 100 46.32 EBTK 100 60.22 MTK 100 38.12
11 - 7/16 ETK 110 50.07 EBTK 110 62.01 - -
12.5 - 1/2 ETK 125 51.42 EBTK 125 64.26 MTK 125 51.63

Length = Satin anodized aluminum Bright chrome Satin nickel Brushed nickel
2.5 m - 8' 2-1/2" (AE) anod. alu. (ACB) anod. alu. (AT) anod. alu. (ATGB)
H = $ / $ / $ / $ /
mm - in. Item No. Length Item No. Length Item No. Length Item No. Length
6 - 1/4 AETK 60 15.19 ATK 60 ACB 16.32 ATK 60 AT 17.44 - -
8 - 5/16 AETK 80 16.32 ATK 80 ACB 17.44 ATK 80 AT 18.57 ATK 80 ATGB 23.96
10 - 3/8 AETK 100 17.44 ATK 100 ACB 18.57 ATK 100 AT 22.48 ATK 100 ATGB 25.96
12.5 - 1/2 AETK 125 22.48 ATK 125 ACB 24.18 ATK 125 AT 25.31 ATK 125 ATGB 31.51

Length = Satin copper Brushed copper Brushed antique bronze Bright brass
2.5 m - 8' 2-1/2" anod. alu. (AK) anod. alu. (AKGB) anod. alu. (ABGB) anod. alu. (AMB)
H = $ / $ / $ / $ /
mm - in. Item No. Length Item No. Length Item No. Length Item No. Length
6 - 1/4 ATK 60 AK 17.44 - - - - ATK 60 AMB 17.20
8 - 5/16 ATK 80 AK 18.57 ATK 80 AKGB 23.96 ATK 80 ABGB 23.96 ATK 80 AMB 18.34
10 - 3/8 ATK 100 AK 22.48 ATK 100 AKGB 25.96 ATK 100 ABGB 25.96 ATK 100 AMB 19.50
12.5 - 1/2 ATK 125 AK 25.31 ATK 125 AKGB 31.51 ATK 125 ABGB 31.51 ATK 125 AMB 25.23

* WARNING: Reproductive Harm -
Note: The anchoring leg of Schluter -RENO-TK is available with a special radius www.P65Warnings.ca.gov
®
perforation so that the profile can be used to form curves.
• Price surcharge: $0.70 per foot
• Available in all materials except stainless steel
• Stocked sizes: 6 mm (1/4") - 10 mm (3/8") R = Radius
• Item No.: R / Profile No. (e.g., R/ATK 100 AMB)
• For delivery time, please call Customer Service

Customer Service: 800-472-4588 17
