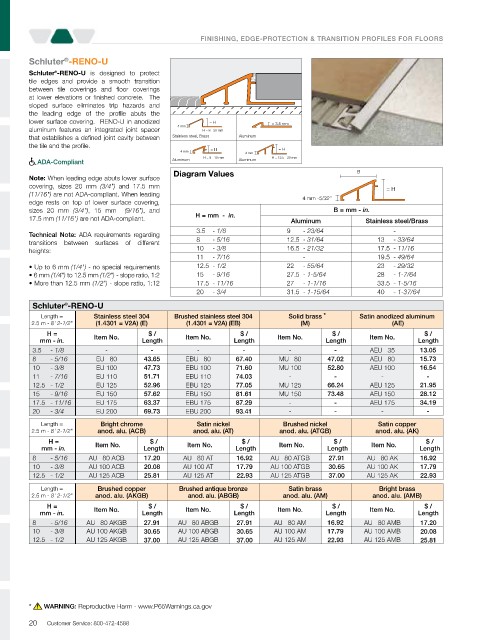

Page 22 - schluter 2019 Price List DJC final(1)_Neat

FINISHING, EDGE-PROTECTION & TRANSITION PROFILES FOR FLOORS

®
Schluter -RENO-U
®
Schluter -RENO-U is designed to protect
tile edges and provide a smooth transition
between tile coverings and floor coverings
at lower elevations or finished concrete. The
sloped surface eliminates trip hazards and
the leading edge of the profile abuts the
lower surface covering. RENO-U in anodized = H = 3.5 mm
4 mm
aluminum features an integrated joint spacer H = 8 - 20 mm
that establishes a defined joint cavity between Stainless steel, Brass Aluminum
the tile and the profile.
4 mm = H 4 mm = H
H = 8 - 10 mm Aluminum H = 12.5 - 20 mm
Aluminum
ADA-Compliant
Diagram Values B
Note: When leading edge abuts lower surface
covering, sizes 20 mm (3/4") and 17.5 mm
= H
(11/16") are not ADA-compliant. When leading
4 mm -5/32"
edge rests on top of lower surface covering,
sizes 20 mm (3/4"), 15 mm (9/16"), and B = mm - in.
17.5 mm (11/16") are not ADA-compliant. H = mm - in. Aluminum Stainless steel/Brass
3.5 - 1/8 9 - 23/64 -
Technical Note: ADA requirements regarding
transitions between surfaces of different 8 - 5/16 12.5 - 31/64 13 - 33/64
heights: 10 - 3/8 16.5 - 21/32 17.5 - 11/16
11 - 7/16 - 19.5 - 49/64
• Up to 6 mm (1/4") - no special requirements 12.5 - 1/2 22 - 55/64 23 - 29/32
• 6 mm (1/4") to 12.5 mm (1/2") - slope ratio, 1:2 15 - 9/16 27.5 - 1-5/64 28 - 1-7/64
• More than 12.5 mm (1/2") - slope ratio, 1:12 17.5 - 11/16 27 - 1-1/16 33.5 - 1-5/16
20 - 3/4 31.5 - 1-15/64 40 - 1-37/64
®
Schluter -RENO-U
Length = Stainless steel 304 Brushed stainless steel 304 Solid brass * Satin anodized aluminum
2.5 m - 8' 2-1/2" (1.4301 = V2A) (E) (1.4301 = V2A) (EB) (M) (AE)
H = $ / $ / $ / $ /
mm - in. Item No. Length Item No. Length Item No. Length Item No. Length
3.5 - 1/8 - - - - - - AEU 35 13.05
8 - 5/16 EU 80 43.65 EBU 80 67.40 MU 80 47.02 AEU 80 15.73
10 - 3/8 EU 100 47.73 EBU 100 71.60 MU 100 52.80 AEU 100 16.54
11 - 7/16 EU 110 51.71 EBU 110 74.03 - - - -
12.5 - 1/2 EU 125 52.96 EBU 125 77.05 MU 125 66.24 AEU 125 21.95
15 - 9/16 EU 150 57.62 EBU 150 81.61 MU 150 73.48 AEU 150 28.12
17.5 - 11/16 EU 175 63.37 EBU 175 87.29 - - AEU 175 34.19
20 - 3/4 EU 200 69.73 EBU 200 93.41 - - - -

Length = Bright chrome Satin nickel Brushed nickel Satin copper
2.5 m - 8' 2-1/2" anod. alu. (ACB) anod. alu. (AT) anod. alu. (ATGB) anod. alu. (AK)
H = Item No. $ / Item No. $ / Item No. $ / Item No. $ /
mm - in. Length Length Length Length
8 - 5/16 AU 80 ACB 17.20 AU 80 AT 16.92 AU 80 ATGB 27.91 AU 80 AK 16.92
10 - 3/8 AU 100 ACB 20.08 AU 100 AT 17.79 AU 100 ATGB 30.65 AU 100 AK 17.79
12.5 - 1/2 AU 125 ACB 25.81 AU 125 AT 22.93 AU 125 ATGB 37.00 AU 125 AK 22.93

Length = Brushed copper Brushed antique bronze Satin brass Bright brass
2.5 m - 8' 2-1/2" anod. alu. (AKGB) anod. alu. (ABGB) anod. alu. (AM) anod. alu. (AMB)
H = Item No. $ / Item No. $ / Item No. $ / Item No. $ /
mm - in. Length Length Length Length
8 - 5/16 AU 80 AKGB 27.91 AU 80 ABGB 27.91 AU 80 AM 16.92 AU 80 AMB 17.20
10 - 3/8 AU 100 AKGB 30.65 AU 100 ABGB 30.65 AU 100 AM 17.79 AU 100 AMB 20.08
12.5 - 1/2 AU 125 AKGB 37.00 AU 125 ABGB 37.00 AU 125 AM 22.93 AU 125 AMB 25.81

* WARNING: Reproductive Harm - www.P65Warnings.ca.gov

20 Customer Service: 800-472-4588
