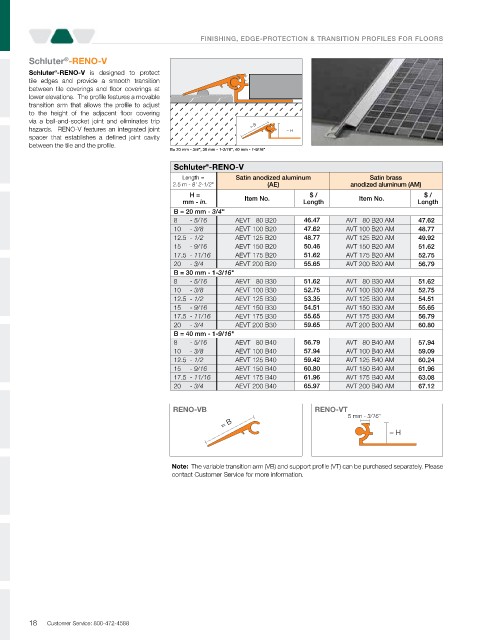

Page 20 - schluter 2019 Price List DJC final(1)_Neat

FINISHING, EDGE-PROTECTION & TRANSITION PROFILES FOR FLOORS

®
Schluter -RENO-V
Schluter -RENO-V is designed to protect
®
tile edges and provide a smooth transition
between tile coverings and floor coverings at
lower elevations. The profile features a movable
transition arm that allows the profile to adjust
to the height of the adjacent floor covering
via a ball-and-socket joint and eliminates trip
hazards. RENO-V features an integrated joint = B = H
spacer that establishes a defined joint cavity
between the tile and the profile.
B= 20 mm - 3/4", 30 mm - 1-3/16", 40 mm - 1-9/16"
Schluter -RENO-V
®
Length = Satin anodized aluminum Satin brass
2.5 m - 8' 2-1/2" (AE) anodized aluminum (AM)
H = Item No. $ / Item No. $ /
mm - in. Length Length
B = 20 mm - 3/4"
8 - 5/16 AEVT 80 B20 46.47 AVT 80 B20 AM 47.62
10 - 3/8 AEVT 100 B20 47.62 AVT 100 B20 AM 48.77
12.5 - 1/2 AEVT 125 B20 48.77 AVT 125 B20 AM 49.92
15 - 9/16 AEVT 150 B20 50.46 AVT 150 B20 AM 51.62
17.5 - 11/16 AEVT 175 B20 51.62 AVT 175 B20 AM 52.75
20 - 3/4 AEVT 200 B20 55.65 AVT 200 B20 AM 56.79
B = 30 mm - 1-3/16"
8 - 5/16 AEVT 80 B30 51.62 AVT 80 B30 AM 51.62
10 - 3/8 AEVT 100 B30 52.75 AVT 100 B30 AM 52.75
12.5 - 1/2 AEVT 125 B30 53.35 AVT 125 B30 AM 54.51
15 - 9/16 AEVT 150 B30 54.51 AVT 150 B30 AM 55.65
17.5 - 11/16 AEVT 175 B30 55.65 AVT 175 B30 AM 56.79
20 - 3/4 AEVT 200 B30 59.65 AVT 200 B30 AM 60.80
B = 40 mm - 1-9/16"
8 - 5/16 AEVT 80 B40 56.79 AVT 80 B40 AM 57.94
10 - 3/8 AEVT 100 B40 57.94 AVT 100 B40 AM 59.09
12.5 - 1/2 AEVT 125 B40 59.42 AVT 125 B40 AM 60.24
15 - 9/16 AEVT 150 B40 60.80 AVT 150 B40 AM 61.96
17.5 - 11/16 AEVT 175 B40 61.96 AVT 175 B40 AM 63.08
20 - 3/4 AEVT 200 B40 65.97 AVT 200 B40 AM 67.12

RENO-VB RENO-VT
5 mm - 3/16"
= B
= H

Note: The variable transition arm (VB) and support profile (VT) can be purchased separately. Please
contact Customer Service for more information.
