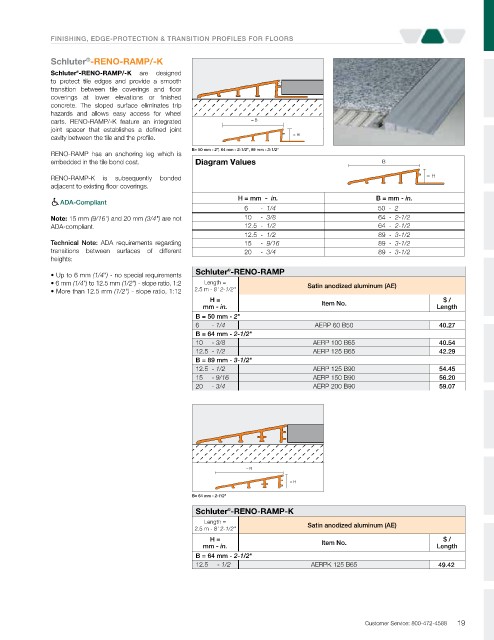

Page 21 - schluter 2019 Price List DJC final(1)_Neat

FINISHING, EDGE-PROTECTION & TRANSITION PROFILES FOR FLOORS

®
Schluter -RENO-RAMP/-K
®
Schluter -RENO-RAMP/-K are designed
to protect tile edges and provide a smooth
transition between tile coverings and floor
coverings at lower elevations or finished
concrete. The sloped surface eliminates trip
hazards and allows easy access for wheel
carts. RENO-RAMP/-K feature an integrated = B
joint spacer that establishes a defined joint
= H
cavity between the tile and the profile.
B= 50 mm - 2", 64 mm - 2-1/2", 89 mm - 3-1/2"
RENO-RAMP has an anchoring leg which is
embedded in the tile bond coat. Diagram Values B
RENO-RAMP-K is subsequently bonded = H
adjacent to existing floor coverings.
H = mm - in. B = mm - in.
ADA-Compliant
6 - 1/4 50 - 2
Note: 15 mm (9/16") and 20 mm (3/4") are not 10 - 3/8 64 - 2-1/2
ADA-compliant. 12.5 - 1/2 64 - 2-1/2
12.5 - 1/2 89 - 3-1/2
Technical Note: ADA requirements regarding 15 - 9/16 89 - 3-1/2
transitions between surfaces of different 20 - 3/4 89 - 3-1/2
heights:
®
Schluter -RENO-RAMP
• Up to 6 mm (1/4") - no special requirements
• 6 mm (1/4") to 12.5 mm (1/2") - slope ratio, 1:2 Length = Satin anodized aluminum (AE)
• More than 12.5 mm (1/2") - slope ratio, 1:12 2.5 m - 8' 2-1/2"
H = $ /
mm - in. Item No. Length
B = 50 mm - 2"
6 - 1/4 AERP 60 B50 40.27
B = 64 mm - 2-1/2"
10 - 3/8 AERP 100 B65 40.54
12.5 - 1/2 AERP 125 B65 42.29
B = 89 mm - 3-1/2"
12.5 - 1/2 AERP 125 B90 54.45
15 - 9/16 AERP 150 B90 56.20
20 - 3/4 AERP 200 B90 59.07

= B
= H
B= 64 mm - 2-1/2"
Schluter -RENO-RAMP-K
®
Length =
2.5 m - 8' 2-1/2" Satin anodized aluminum (AE)
H = Item No. $ /
mm - in. Length
B = 64 mm - 2-1/2"
12.5 - 1/2 AERPK 125 B65 49.42

Customer Service: 800-472-4588 19
