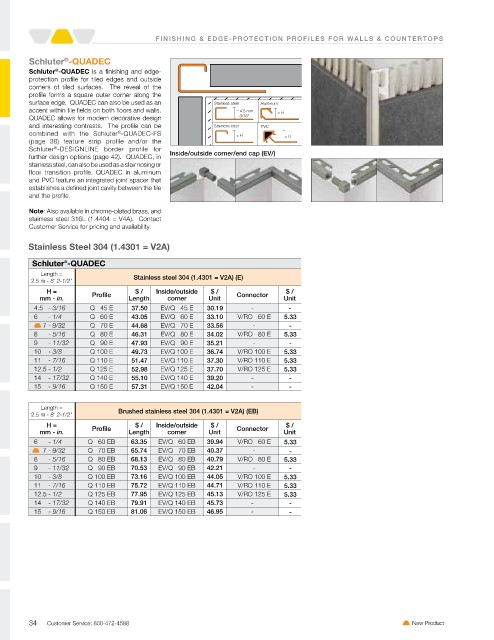

Page 36 - schluter 2019 Price List DJC final(1)_Neat

FINISH ING & EDGE-PRO TECTION PRO FILES FOR WALL S & COUNTE R T OP S

®
Schluter -QUADEC
®
Schluter -QUADEC is a finishing and edge-
protection profile for tiled edges and outside
corners of tiled surfaces. The reveal of the
profile forms a square outer corner along the
surface edge. QUADEC can also be used as an Stainless steel Aluminum
accent within tile fields on both floors and walls. = 4.5 mm = H
QUADEC allows for modern decorative design 3/16"
and interesting contrasts. The profile can be Stainless steel PVC
®
combined with the Schluter -QUADEC-FS = H = H
(page 38) feature strip profile and/or the
Schluter -DESIGNLINE border profile for Inside/outside corner/end cap (EV/)
®
further design options (page 42). QUADEC, in
stainless steel, can also be used as a stair nosing or
floor transition profile. QUADEC in aluminum
and PVC feature an integrated joint spacer that
establishes a defined joint cavity between the tile
and the profile.
Note: Also available in chrome-plated brass, and
stainless steel 316L (1.4404 = V4A). Contact
Customer Service for pricing and availability.

Stainless Steel 304 (1.4301 = V2A)
Schluter -QUADEC
®
Length =
2.5 m - 8' 2-1/2" Stainless steel 304 (1.4301 = V2A) (E)
H = $ / Inside/outside $ / $ /
mm - in. Profile Length corner Unit Connector Unit
4.5 - 3/16 Q 45 E 37.50 EV/Q 45 E 30.19 - -
6 - 1/4 Q 60 E 43.05 EV/Q 60 E 33.10 V/RO 60 E 5.33
7 - 9/32 Q 70 E 44.68 EV/Q 70 E 33.56 - -
8 - 5/16 Q 80 E 46.31 EV/Q 80 E 34.02 V/RO 80 E 5.33
9 - 11/32 Q 90 E 47.93 EV/Q 90 E 35.21 - -
10 - 3/8 Q 100 E 49.73 EV/Q 100 E 36.74 V/RO 100 E 5.33
11 - 7/16 Q 110 E 51.47 EV/Q 110 E 37.30 V/RO 110 E 5.33
12.5 - 1/2 Q 125 E 52.98 EV/Q 125 E 37.70 V/RO 125 E 5.33
14 - 17/32 Q 140 E 55.10 EV/Q 140 E 39.20 - -
15 - 9/16 Q 150 E 57.31 EV/Q 150 E 42.04 - -

Length =
2.5 m - 8' 2-1/2" Brushed stainless steel 304 (1.4301 = V2A) (EB)
H = $ / Inside/outside $ / $ /
mm - in. Profile Length corner Unit Connector Unit
6 - 1/4 Q 60 EB 63.35 EV/Q 60 EB 39.94 V/RO 60 E 5.33
7 - 9/32 Q 70 EB 65.74 EV/Q 70 EB 40.37 - -
8 - 5/16 Q 80 EB 68.13 EV/Q 80 EB 40.79 V/RO 80 E 5.33
9 - 11/32 Q 90 EB 70.53 EV/Q 90 EB 42.21 - -
10 - 3/8 Q 100 EB 73.16 EV/Q 100 EB 44.05 V/RO 100 E 5.33
11 - 7/16 Q 110 EB 75.72 EV/Q 110 EB 44.71 V/RO 110 E 5.33
12.5 - 1/2 Q 125 EB 77.95 EV/Q 125 EB 45.13 V/RO 125 E 5.33
14 - 17/32 Q 140 EB 79.91 EV/Q 140 EB 45.73 - -
15 - 9/16 Q 150 EB 81.06 EV/Q 150 EB 46.95 - -

34 Customer Service: 800-472-4588 New Product
