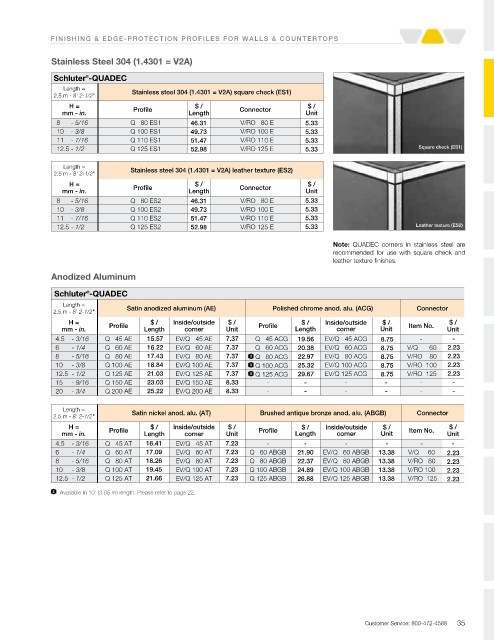

Page 37 - schluter 2019 Price List DJC final(1)_Neat

F INI S H I N G & EDG E-PROT ECT ION PROF I LES FOR WALL S & COUNTERTOPS

Stainless Steel 304 (1.4301 = V2A)

Schluter -QUADEC
®
Length =
2.5 m - 8' 2-1/2" Stainless steel 304 (1.4301 = V2A) square check (ES1)
H = Profile $ / Connector $ /
mm - in. Length Unit
8 - 5/16 Q 80 ES1 46.31 V/RO 80 E 5.33
10 - 3/8 Q 100 ES1 49.73 V/RO 100 E 5.33
11 - 7/16 Q 110 ES1 51.47 V/RO 110 E 5.33
12.5 - 1/2 Q 125 ES1 52.98 V/RO 125 E 5.33 Square check (ES1)
Length =
2.5 m - 8' 2-1/2" Stainless steel 304 (1.4301 = V2A) leather texture (ES2)
H = $ / $ /
mm - in. Profile Length Connector Unit
8 - 5/16 Q 80 ES2 46.31 V/RO 80 E 5.33
10 - 3/8 Q 100 ES2 49.73 V/RO 100 E 5.33
11 - 7/16 Q 110 ES2 51.47 V/RO 110 E 5.33
12.5 - 1/2 Q 125 ES2 52.98 V/RO 125 E 5.33 Leather texture (ES2)
Note: QUADEC corners in stainless steel are
recommended for use with square check and
leather texture finishes.
Anodized Aluminum

Schluter -QUADEC
®
Length =
2.5 m - 8' 2-1/2" Satin anodized aluminum (AE) Polished chrome anod. alu. (ACG) Connector
H = $ / Inside/outside $ / $ / Inside/outside $ / $ /
mm - in. Profile Length corner Unit Profile Length corner Unit Item No. Unit
4.5 - 3/16 Q 45 AE 15.57 EV/Q 45 AE 7.37 Q 45 ACG 19.56 EV/Q 45 ACG 8.75 - -
6 - 1/4 Q 60 AE 16.22 EV/Q 60 AE 7.37 Q 60 ACG 20.38 EV/Q 60 ACG 8.75 V/Q 60 2.23
8 - 5/16 Q 80 AE 17.43 EV/Q 80 AE 7.37 3 Q 80 ACG 22.97 EV/Q 80 ACG 8.75 V/RO 80 2.23
10 - 3/8 Q 100 AE 18.84 EV/Q 100 AE 7.37 3 Q 100 ACG 25.32 EV/Q 100 ACG 8.75 V/RO 100 2.23
12.5 - 1/2 Q 125 AE 21.03 EV/Q 125 AE 7.37 3 Q 125 ACG 29.67 EV/Q 125 ACG 8.75 V/RO 125 2.23
15 - 9/16 Q 150 AE 23.03 EV/Q 150 AE 8.33 - - - - - -
20 - 3/4 Q 200 AE 25.22 EV/Q 200 AE 8.33 - - - - - -

Length =
2.5 m - 8' 2-1/2" Satin nickel anod. alu. (AT) Brushed antique bronze anod. alu. (ABGB) Connector
H = Profile $ / Inside/outside $ / Profile $ / Inside/outside $ / Item No. $ /
mm - in. Length corner Unit Length corner Unit Unit
4.5 - 3/16 Q 45 AT 16.41 EV/Q 45 AT 7.23 - - - - - -
6 - 1/4 Q 60 AT 17.09 EV/Q 60 AT 7.23 Q 60 ABGB 21.90 EV/Q 60 ABGB 13.38 V/Q 60 2.23
8 - 5/16 Q 80 AT 18.26 EV/Q 80 AT 7.23 Q 80 ABGB 22.37 EV/Q 80 ABGB 13.38 V/RO 80 2.23
10 - 3/8 Q 100 AT 19.45 EV/Q 100 AT 7.23 Q 100 ABGB 24.89 EV/Q 100 ABGB 13.38 V/RO 100 2.23
12.5 - 1/2 Q 125 AT 21.66 EV/Q 125 AT 7.23 Q 125 ABGB 26.88 EV/Q 125 ABGB 13.38 V/RO 125 2.23

3 Available in 10' (3.05 m) length. Please refer to page 22.

Customer Service: 800-472-4588 35
