M O V E M EN T J O INT & C O VE -S H A P ED PROFILE S

®

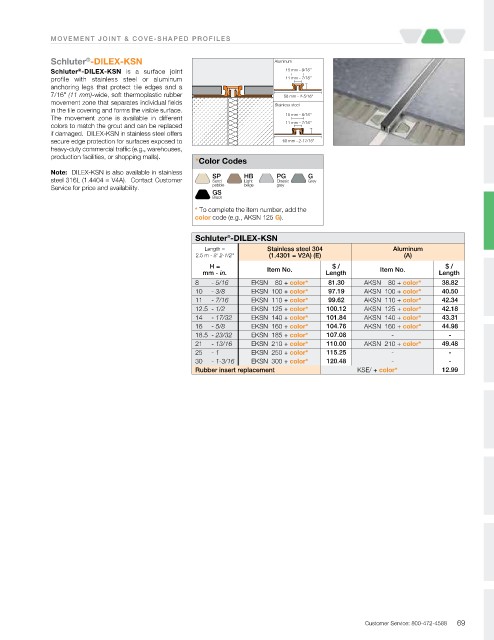

Schluter -DILEX-KSN Aluminum
®
Schluter -DILEX-KSN is a surface joint 15 mm - 9/16"
profile with stainless steel or aluminum 11 mm - 7/16"
anchoring legs that protect tile edges and a
7/16" (11 mm)-wide, soft thermoplastic rubber 58 mm - 2-5/16"
movement zone that separates individual fields Stainless steel
in the tile covering and forms the visible surface.
The movement zone is available in different 15 mm - 9/16"
11 mm - 7/16"
colors to match the grout and can be replaced
if damaged. DILEX-KSN in stainless steel offers
secure edge protection for surfaces exposed to 68 mm - 2-11/16"
heavy-duty commercial traffic (e.g., warehouses,
production facilities, or shopping malls).
*Color Codes
Note: DILEX-KSN is also available in stainless SP HB PG G
steel 316L (1.4404 = V4A). Contact Customer Sand Light Classic Grey
Service for price and availability. pebble beige grey
GS
Black
* To complete the item number, add the
color code (e.g., AKSN 125 G).

Schluter -DILEX-KSN
®
Length = Stainless steel 304 Aluminum
2.5 m - 8' 2-1/2" (1.4301 = V2A) (E) (A)
H = $ / $ /
mm - in. Item No. Length Item No. Length
8 - 5/16 EKSN 80 + color* 81.30 AKSN 80 + color* 38.82
10 - 3/8 EKSN 100 + color* 97.19 AKSN 100 + color* 40.50
11 - 7/16 EKSN 110 + color* 99.62 AKSN 110 + color* 42.34
12.5 - 1/2 EKSN 125 + color* 100.12 AKSN 125 + color* 42.18
14 - 17/32 EKSN 140 + color* 101.84 AKSN 140 + color* 43.31
16 - 5/8 EKSN 160 + color* 104.76 AKSN 160 + color* 44.98
18.5 - 23/32 EKSN 185 + color* 107.08 - -
21 - 13/16 EKSN 210 + color* 110.00 AKSN 210 + color* 49.48
25 - 1 EKSN 250 + color* 115.25 - -
30 - 1-3/16 EKSN 300 + color* 120.48 - -
Rubber insert replacement KSE/ + color* 12.99

Customer Service: 800-472-4588 69
