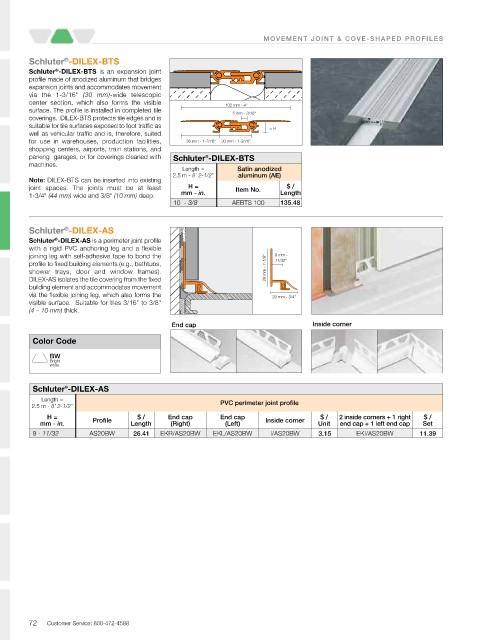

Page 74 - schluter 2019 Price List DJC final(1)_Neat

MOVEM ENT JOI NT & COVE- SHAPED P R OFI LES

®
Schluter -DILEX-BTS
Schluter -DILEX-BTS is an expansion joint
®
profile made of anodized aluminum that bridges
expansion joints and accommodates movement
via the 1-3/16" (30 mm)-wide telescopic
center section, which also forms the visible 102 mm - 4"
surface. The profile is installed in completed tile 5 mm - 3/16"
coverings. DILEX-BTS protects tile edges and is
suitable for tile surfaces exposed to foot traffic as
= H
well as vehicular traffic and is, therefore, suited
for use in warehouses, production facilities, 36 mm - 1-7/16" 30 mm - 1-3/16"
shopping centers, airports, train stations, and
parking garages, or for coverings cleaned with Schluter -DILEX-BTS
®
machines.
Length = Satin anodized
2.5 m - 8' 2-1/2" aluminum (AE)
Note: DILEX-BTS can be inserted into existing
joint spaces. The joints must be at least H = Item No. $ /
1-3/4" (44 mm) wide and 3/8" (10 mm) deep. mm - in. Length
10 - 3/8 AEBTS 100 135.48

®
Schluter -DILEX-AS
®
Schluter -DILEX-AS is a perimeter joint profile
with a rigid PVC anchoring leg and a flexible
joining leg with self-adhesive tape to bond the 9 mm -
profile to fixed building elements (e.g., bathtubs, 29 mm - 1-1/8" 11/32"
shower trays, door and window frames).
DILEX-AS isolates the tile covering from the fixed
building element and accommodates movement
via the flexible joining leg, which also forms the 20 mm - 3/4"
visible surface. Suitable for tiles 3/16" to 3/8"
(4 – 10 mm) thick.
End cap Inside corner
Color Code

BW
Bright
white

Schluter -DILEX-AS
®
Length =
2.5 m - 8' 2-1/2" PVC perimeter joint profile
H = $ / End cap End cap $ / 2 inside corners + 1 right $ /
mm - in. Profile Length (Right) (Left) Inside corner Unit end cap + 1 left end cap Set
9 - 11/32 AS20BW 26.41 EKR/AS20BW EKL/AS20BW I/AS20BW 3.15 EKI/AS20BW 11.39
