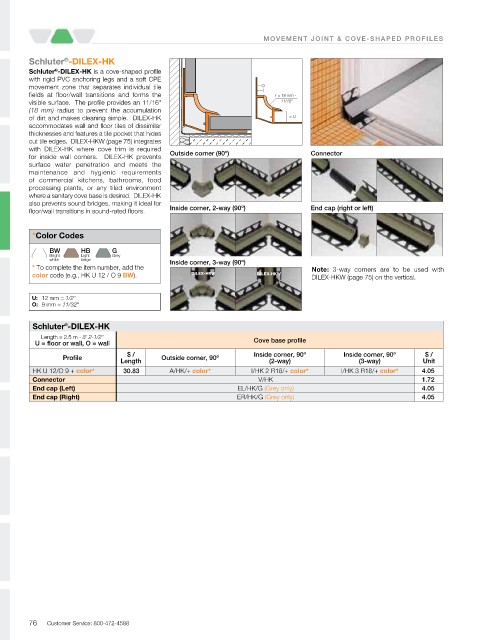

Page 78 - schluter 2019 Price List DJC final(1)_Neat

MOVEM ENT JOI NT & COVE- SHAPED P R OFI LES

®
Schluter -DILEX-HK
®
Schluter -DILEX-HK is a cove-shaped profile
with rigid PVC anchoring legs and a soft CPE
movement zone that separates individual tile = O
fields at floor/wall transitions and forms the r = 18 mm -
visible surface. The profile provides an 11/16" 11/16"
(18 mm) radius to prevent the accumulation
of dirt and makes cleaning simple. DILEX-HK = U
accommodates wall and floor tiles of dissimilar
thicknesses and features a tile pocket that hides
cut tile edges. DILEX-HKW (page 75) integrates
with DILEX-HK where cove trim is required Outside corner (90º) Connector
for inside wall corners. DILEX-HK prevents
surface water penetration and meets the
maintenance and hygienic requirements
of commercial kitchens, bathrooms, food
processing plants, or any tiled environment
where a sanitary cove base is desired. DILEX-HK
also prevents sound bridges, making it ideal for
floor/wall transitions in sound-rated floors. Inside corner, 2-way (90º) End cap (right or left)

*Color Codes
BW HB G
Bright Light Grey
white beige Inside corner, 3-way (90º)
* To complete the item number, add the Note: 3-way corners are to be used with
color code (e.g., HK U 12 / O 9 BW). DILEX-HKW DILEX-HKW DILEX-HKW (page 75) on the vertical.

U: 12 mm = 1/2"
O: 9 mm = 11/32"

Schluter -DILEX-HK
®
Length = 2.5 m - 8' 2-1/2"
U = floor or wall, O = wall Cove base profile
$ / Inside corner, 90º Inside corner, 90º $ /
Profile Outside corner, 90º
Length (2-way) (3-way) Unit
HK U 12/O 9 + color* 30.83 A/HK/+ color* I/HK 2 R18/+ color* I/HK 3 R18/+ color* 4.05
Connector V/HK 1.72
End cap (Left) EL/HK/G (Grey only) 4.05
End cap (Right) ER/HK/G (Grey only) 4.05

76 Customer Service: 800-472-4588
