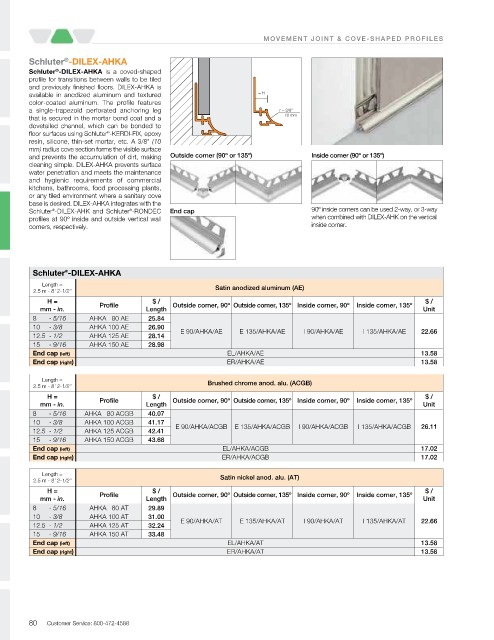

Page 82 - schluter 2019 Price List DJC final(1)_Neat

MOVEM ENT JOI NT & COVE- SHAPED P R OFI LES

®
Schluter -DILEX-AHKA
®
Schluter -DILEX-AHKA is a coved-shaped
profile for transitions between walls to be tiled
and previously finished floors. DILEX-AHKA is
available in anodized aluminum and textured = H
color-coated aluminum. The profile features
a single-trapezoid perforated anchoring leg r = 3/8" -
that is secured in the mortar bond coat and a 10 mm
dovetailed channel, which can be bonded to
®
floor surfaces using Schluter -KERDI-FIX, epoxy
resin, silicone, thin-set mortar, etc. A 3/8" (10
mm) radius cove section forms the visible surface
and prevents the accumulation of dirt, making Outside corner (90º or 135º) Inside corner (90º or 135º)
cleaning simple. DILEX-AHKA prevents surface
water penetration and meets the maintenance
and hygienic requirements of commercial
kitchens, bathrooms, food processing plants,
or any tiled environment where a sanitary cove
base is desired. DILEX-AHKA integrates with the
®
®
Schluter -DILEX-AHK and Schluter -RONDEC End cap 90º inside corners can be used 2-way, or 3-way
profiles at 90º inside and outside vertical wall when combined with DILEX-AHK on the vertical
corners, respectively. inside corner.

Schluter -DILEX-AHKA
®
Length =
2.5 m - 8' 2-1/2" Satin anodized aluminum (AE)
H = Profile $ / Outside corner, 90º Outside corner, 135º Inside corner, 90º Inside corner, 135º $ /
mm - in. Length Unit
8 - 5/16 AHKA 80 AE 25.84
10 - 3/8 AHKA 100 AE 26.90
12.5 - 1/2 AHKA 125 AE 28.14 E 90/AHKA/AE E 135/AHKA/AE I 90/AHKA/AE I 135/AHKA/AE 22.66
15 - 9/16 AHKA 150 AE 28.98
End cap (left) EL/AHKA/AE 13.58
End cap (right) ER/AHKA/AE 13.58

Length =
2.5 m - 8' 2-1/2" Brushed chrome anod. alu. (ACGB)
H = Profile $ / Outside corner, 90º Outside corner, 135º Inside corner, 90º Inside corner, 135º $ /
mm - in. Length Unit
8 - 5/16 AHKA 80 ACGB 40.07
10 - 3/8 AHKA 100 ACGB 41.17
E 90/AHKA/ACGB E 135/AHKA/ACGB I 90/AHKA/ACGB I 135/AHKA/ACGB 26.11
12.5 - 1/2 AHKA 125 ACGB 42.41
15 - 9/16 AHKA 150 ACGB 43.68
End cap (left) EL/AHKA/ACGB 17.02
End cap (right) ER/AHKA/ACGB 17.02

Length =
2.5 m - 8' 2-1/2" Satin nickel anod. alu. (AT)
H = $ / $ /
mm - in. Profile Length Outside corner, 90º Outside corner, 135º Inside corner, 90º Inside corner, 135º Unit
8 - 5/16 AHKA 80 AT 29.89
10 - 3/8 AHKA 100 AT 31.00
12.5 - 1/2 AHKA 125 AT 32.24 E 90/AHKA/AT E 135/AHKA/AT I 90/AHKA/AT I 135/AHKA/AT 22.66
15 - 9/16 AHKA 150 AT 33.48
End cap (left) EL/AHKA/AT 13.58
End cap (right) ER/AHKA/AT 13.58

80 Customer Service: 800-472-4588
