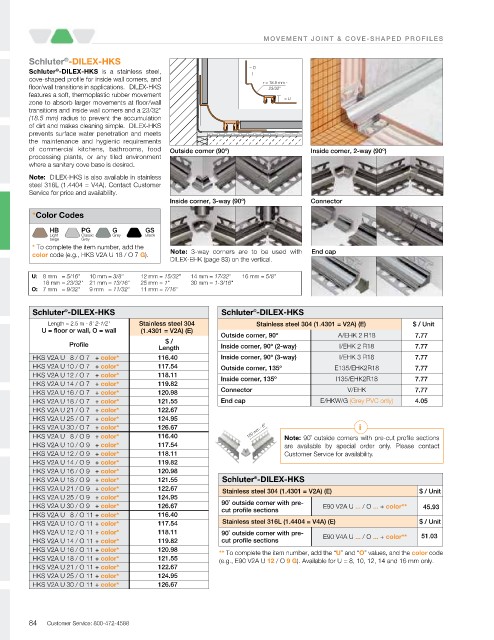

Page 86 - schluter 2019 Price List DJC final(1)_Neat

MOVEM ENT JOI NT & COVE- SHAPED P R OFI LES

Schluter -DILEX-HKS
®
= O
Schluter -DILEX-HKS is a stainless steel,
®
cove-shaped profile for inside wall corners, and r = 18.5 mm -
floor/wall transitions in applications. DILEX-HKS 23/32"
features a soft, thermoplastic rubber movement = U
zone to absorb larger movements at floor/wall
transitions and inside wall corners and a 23/32"
(18.5 mm) radius to prevent the accumulation
of dirt and makes cleaning simple. DILEX-HKS
prevents surface water penetration and meets
the maintenance and hygienic requirements
of commercial kitchens, bathrooms, food Outside corner (90º) Inside corner, 2-way (90º)
processing plants, or any tiled environment
where a sanitary cove base is desired.
Note: DILEX-HKS is also available in stainless
steel 316L (1.4404 = V4A). Contact Customer
Service for price and availability.
Inside corner, 3-way (90º) Connector
*Color Codes
HB PG G GS
Light Classic Grey Black
beige Grey
* To complete the item number, add the
color code (e.g., HKS V2A U 18 / O 7 G). Note: 3-way corners are to be used with End cap
DILEX-EHK (page 83) on the vertical.
U: 8 mm = 5/16" 10 mm = 3/8" 12 mm = 15/32" 14 mm = 17/32" 16 mm = 5/8"
18 mm = 23/32" 21 mm = 13/16" 25 mm = 1" 30 mm = 1-3/16"
O: 7 mm = 9/32" 9 mm = 11/32" 11 mm = 7/16"

®
®
Schluter -DILEX-HKS Schluter -DILEX-HKS
Length = 2.5 m - 8' 2-1/2" Stainless steel 304 Stainless steel 304 (1.4301 = V2A) (E) $ / Unit
U = floor or wall, O = wall (1.4301 = V2A) (E)
Outside corner, 90º A/EHK 2 R18 7.77
$ /
Profile Inside corner, 90º (2-way) I/EHK 2 R18 7.77
Length
HKS V2A U 8 / O 7 + color* 116.40 Inside corner, 90º (3-way) I/EHK 3 R18 7.77
HKS V2A U 10 / O 7 + color* 117.54 Outside corner, 135º E135/EHK2R18 7.77
HKS V2A U 12 / O 7 + color* 118.11 Inside corner, 135º I135/EHK2R18 7.77
HKS V2A U 14 / O 7 + color* 119.82
HKS V2A U 16 / O 7 + color* 120.98 Connector V/EHK 7.77
HKS V2A U 18 / O 7 + color* 121.55 End cap E/HKW/G (Grey PVC only) 4.05
HKS V2A U 21 / O 7 + color* 122.67
HKS V2A U 25 / O 7 + color* 124.95
HKS V2A U 30 / O 7 + color* 126.67 150 mm - 6" i
HKS V2A U 8 / O 9 + color* 116.40 Note: 90˚ outside corners with pre-cut profile sections
HKS V2A U 10 / O 9 + color* 117.54 are available by special order only. Please contact
HKS V2A U 12 / O 9 + color* 118.11 Customer Service for availability.
HKS V2A U 14 / O 9 + color* 119.82
HKS V2A U 16 / O 9 + color* 120.98
®
HKS V2A U 18 / O 9 + color* 121.55 Schluter -DILEX-HKS
HKS V2A U 21 / O 9 + color* 122.67
Stainless steel 304 (1.4301 = V2A) (E) $ / Unit
HKS V2A U 25 / O 9 + color* 124.95
HKS V2A U 30 / O 9 + color* 126.67 90˚ outside corner with pre- E90 V2A U ... / O ... + color** 45.93
cut profile sections
HKS V2A U 8 / O 11 + color* 116.40
HKS V2A U 10 / O 11 + color* 117.54 Stainless steel 316L (1.4404 = V4A) (E) $ / Unit
HKS V2A U 12 / O 11 + color* 118.11 90˚ outside corner with pre- 51.03
HKS V2A U 14 / O 11 + color* 119.82 cut profile sections E90 V4A U ... / O ... + color**
HKS V2A U 16 / O 11 + color* 120.98 ** To complete the item number, add the “U” and “O” values, and the color code
HKS V2A U 18 / O 11 + color* 121.55 (e.g., E90 V2A U 12 / O 9 G). Available for U = 8, 10, 12, 14 and 16 mm only.
HKS V2A U 21 / O 11 + color* 122.67
HKS V2A U 25 / O 11 + color* 124.95
HKS V2A U 30 / O 11 + color* 126.67

84 Customer Service: 800-472-4588
