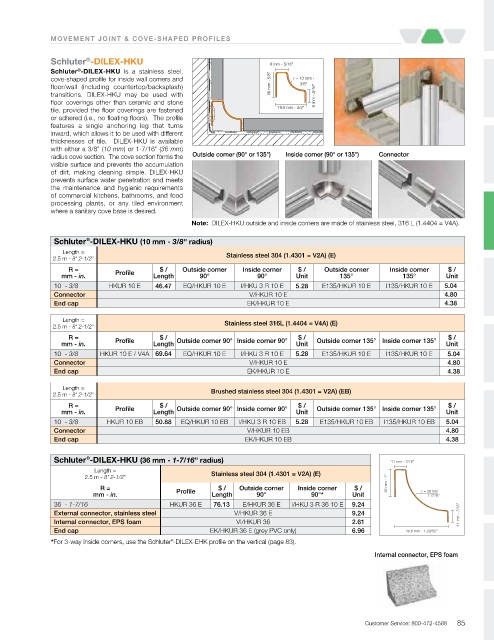

Page 87 - schluter 2019 Price List DJC final(1)_Neat

M O V E M EN T J O INT & C O VE -S H A P ED PROFILE S

®
Schluter -DILEX-HKU 8 mm - 5/16"
®
Schluter -DILEX-HKU is a stainless steel,
cove-shaped profile for inside wall corners and r = 10 mm -
floor/wall (including countertop/backsplash) 16 mm - 5/8" 3/8"
transitions. DILEX-HKU may be used with 8 mm - 5/16"
floor coverings other than ceramic and stone
tile, provided the floor coverings are fastened 19.5 mm - 3/4"
or adhered (i.e., no floating floors). The profile
features a single anchoring leg that turns
inward, which allows it to be used with different
thicknesses of tile. DILEX-HKU is available
with either a 3/8" (10 mm) or 1-7/16" (36 mm)
radius cove section. The cove section forms the Outside corner (90° or 135°) Inside corner (90° or 135°) Connector
visible surface and prevents the accumulation
of dirt, making cleaning simple. DILEX-HKU
prevents surface water penetration and meets
the maintenance and hygienic requirements
of commercial kitchens, bathrooms, and food
processing plants, or any tiled environment
where a sanitary cove base is desired.
Note: DILEX-HKU outside and inside corners are made of stainless steel, 316 L (1.4404 = V4A).

®
Schluter -DILEX-HKU (10 mm - 3/8" radius)
Length =
2.5 m - 8' 2-1/2" Stainless steel 304 (1.4301 = V2A) (E)
R = $ / Outside corner Inside corner $ / Outside corner Inside corner $ /
mm - in. Profile Length 90° 90° Unit 135° 135° Unit
10 - 3/8 HKUR 10 E 46.47 EQ/HKUR 10 E I/HKU 3 R 10 E 5.28 E135/HKUR 10 E I135/HKUR 10 E 5.04
Connector V/HKUR 10 E 4.80
End cap EK/HKUR 10 E 4.38

Length =
2.5 m - 8' 2-1/2" Stainless steel 316L (1.4404 = V4A) (E)
R = $ / $ / $ /
mm - in. Profile Length Outside corner 90° Inside corner 90° Unit Outside corner 135° Inside corner 135° Unit
10 - 3/8 HKUR 10 E / V4A 69.64 EQ/HKUR 10 E I/HKU 3 R 10 E 5.28 E135/HKUR 10 E I135/HKUR 10 E 5.04
Connector V/HKUR 10 E 4.80
End cap EK/HKUR 10 E 4.38

Length =
2.5 m - 8' 2-1/2" Brushed stainless steel 304 (1.4301 = V2A) (EB)
R = $ / $ / $ /
mm - in. Profile Length Outside corner 90° Inside corner 90° Unit Outside corner 135° Inside corner 135° Unit
10 - 3/8 HKUR 10 EB 50.88 EQ/HKUR 10 EB I/HKU 3 R 10 EB 5.28 E135/HKUR 10 EB I135/HKUR 10 EB 5.04
Connector V/HKUR 10 EB 4.80
End cap EK/HKUR 10 EB 4.38

Schluter -DILEX-HKU (36 mm - 1-7/16" radius) 11 mm - 7/16"
®
Length =
2.5 m - 8' 2-1/2" Stainless steel 304 (1.4301 = V2A) (E)
R = $ / Outside corner Inside corner $ / 25 mm - 1"
mm - in. Profile Length 90° 90°* Unit r = 36 mm
1-7/16"
36 - 1-7/16 HKUR 36 E 76.13 E/HKUR 36 E I/HKU 3 R 36 10 E 9.24
External connector, stainless steel V/HKUR 36 E 9.24 11 mm - 7/16"
Internal connector, EPS foam VI/HKUR 36 2.61
End cap EK/HKUR 36 E (grey PVC only) 6.96 48.6 mm - 1-29/32"
*For 3-way inside corners, use the Schluter -DILEX-EHK profile on the vertical (page 83).
®
Internal connector, EPS foam

Customer Service: 800-472-4588 85
