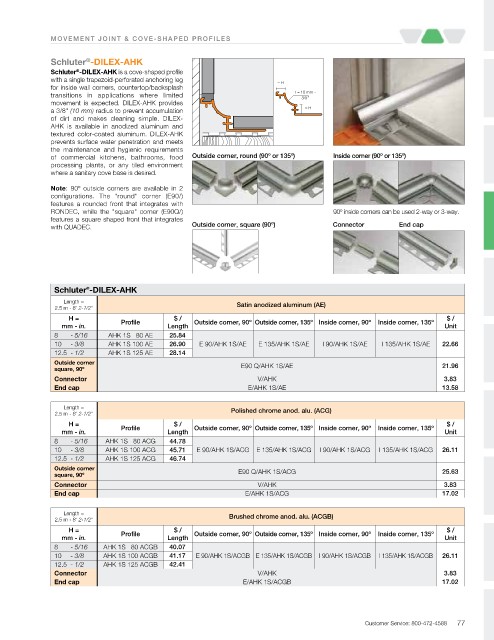

Page 79 - schluter 2019 Price List DJC final(1)_Neat

M O V E M EN T J O INT & C O VE -S H A P ED PROFILE S

®
Schluter -DILEX-AHK
®
Schluter -DILEX-AHK is a cove-shaped profile
with a single trapezoid-perforated anchoring leg
= H
for inside wall corners, countertop/backsplash
transitions in applications where limited r = 10 mm -
3/8"
movement is expected. DILEX-AHK provides
a 3/8" (10 mm) radius to prevent accumulation = H
of dirt and makes cleaning simple. DILEX-
AHK is available in anodized aluminum and
textured color-coated aluminum. DILEX-AHK
prevents surface water penetration and meets
the maintenance and hygienic requirements
of commercial kitchens, bathrooms, food Outside corner, round (90º or 135º) Inside corner (90º or 135º)
processing plants, or any tiled environment
where a sanitary cove base is desired.
Note: 90º outside corners are available in 2
configurations. The "round" corner (E90/)
features a rounded front that integrates with
RONDEC, while the "square" corner (E90Q/) 90º inside corners can be used 2-way or 3-way.
features a square shaped front that integrates
with QUADEC. Outside corner, square (90º) Connector End cap

Schluter -DILEX-AHK
®
Length =
2.5 m - 8' 2-1/2" Satin anodized aluminum (AE)
H = $ / $ /
mm - in. Profile Length Outside corner, 90º Outside corner, 135º Inside corner, 90º Inside corner, 135º Unit
8 - 5/16 AHK 1S 80 AE 25.84
10 - 3/8 AHK 1S 100 AE 26.90 E 90/AHK 1S/AE E 135/AHK 1S/AE I 90/AHK 1S/AE I 135/AHK 1S/AE 22.66
12.5 - 1/2 AHK 1S 125 AE 28.14
Outside corner 21.96
square, 90º E90 Q/AHK 1S/AE
Connector V/AHK 3.83
End cap E/AHK 1S/AE 13.58

Length =
2.5 m - 8' 2-1/2" Polished chrome anod. alu. (ACG)
H = Profile $ / Outside corner, 90º Outside corner, 135º Inside corner, 90º Inside corner, 135º $ /
mm - in. Length Unit
8 - 5/16 AHK 1S 80 ACG 44.78
10 - 3/8 AHK 1S 100 ACG 45.71 E 90/AHK 1S/ACG E 135/AHK 1S/ACG I 90/AHK 1S/ACG I 135/AHK 1S/ACG 26.11
12.5 - 1/2 AHK 1S 125 ACG 46.74
Outside corner E90 Q/AHK 1S/ACG 25.63
square, 90º
Connector V/AHK 3.83
End cap E/AHK 1S/ACG 17.02

Length =
2.5 m - 8' 2-1/2" Brushed chrome anod. alu. (ACGB)
H = $ / $ /
mm - in. Profile Length Outside corner, 90º Outside corner, 135º Inside corner, 90º Inside corner, 135º Unit
8 - 5/16 AHK 1S 80 ACGB 40.07
10 - 3/8 AHK 1S 100 ACGB 41.17 E 90/AHK 1S/ACGB E 135/AHK 1S/ACGB I 90/AHK 1S/ACGB I 135/AHK 1S/ACGB 26.11
12.5 - 1/2 AHK 1S 125 ACGB 42.41
Connector V/AHK 3.83
End cap E/AHK 1S/ACGB 17.02

Customer Service: 800-472-4588 77
