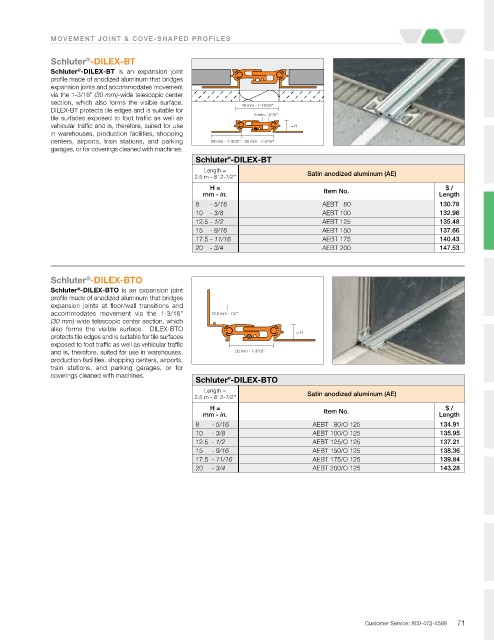

Page 73 - schluter 2019 Price List DJC final(1)_Neat

M O V E M EN T J O INT & C O VE -S H A P ED PROFILE S

®
Schluter -DILEX-BT
®
Schluter -DILEX-BT is an expansion joint
profile made of anodized aluminum that bridges
expansion joints and accommodates movement
via the 1-3/16" (30 mm)-wide telescopic center
section, which also forms the visible surface.
40 mm - 1-19/32"
DILEX-BT protects tile edges and is suitable for
tile surfaces exposed to foot traffic as well as 5 mm - 3/16"
vehicular traffic and is, therefore, suited for use = H
in warehouses, production facilities, shopping
centers, airports, train stations, and parking 28 mm - 1-3/32" 30 mm - 1-3/16"
garages, or for coverings cleaned with machines.
Schluter -DILEX-BT
®
Length =
2.5 m - 8' 2-1/2" Satin anodized aluminum (AE)
H = $ /
mm - in. Item No. Length
8 - 5/16 AEBT 80 130.78
10 - 3/8 AEBT 100 132.96
12.5 - 1/2 AEBT 125 135.48
15 - 9/16 AEBT 150 137.66
17.5 - 11/16 AEBT 175 140.43
20 - 3/4 AEBT 200 147.53

®
Schluter -DILEX-BTO
®
Schluter -DILEX-BTO is an expansion joint
profile made of anodized aluminum that bridges
expansion joints at floor/wall transitions and
accommodates movement via the 1-3/16" 12.5 mm - 1/2"
(30 mm)-wide telescopic center section, which
also forms the visible surface. DILEX-BTO = H
protects tile edges and is suitable for tile surfaces
exposed to foot traffic as well as vehicular traffic
and is, therefore, suited for use in warehouses, 30 mm - 1-3/16"
production facilities, shopping centers, airports,
train stations, and parking garages, or for
coverings cleaned with machines.
®
Schluter -DILEX-BTO
Length =
2.5 m - 8' 2-1/2" Satin anodized aluminum (AE)
H = $ /
mm - in. Item No. Length
8 - 5/16 AEBT 80/O 125 134.91
10 - 3/8 AEBT 100/O 125 135.95
12.5 - 1/2 AEBT 125/O 125 137.21
15 - 9/16 AEBT 150/O 125 138.36
17.5 - 11/16 AEBT 175/O 125 139.84
20 - 3/4 AEBT 200/O 125 143.28

Customer Service: 800-472-4588 71
