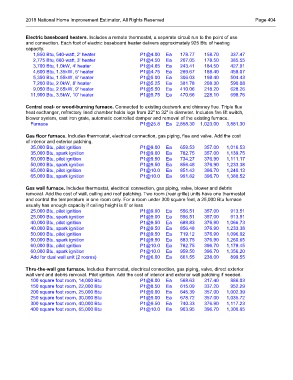

2018 National Home Improvement Estimator, All Rights Reserved Page 404

Electric baseboard heaters. Includes a remote thermostat, a separate circuit run to the point of use
and connection. Each foot of electric baseboard heater delivers approximately 925 Btu of heating
capacity.
1,850 Btu, 540-watt, 2' heater P1@4.00 Ea 178.77 158.70 337.47
2,775 Btu, 660-watt, 3' heater P1@4.50 Ea 207.05 178.50 385.55
3,700 Btu, 1.0kW, 4' heater P1@4.65 Ea 243.41 184.50 427.91
4,600 Btu, 1.35kW, 5' heater P1@4.75 Ea 269.67 188.40 458.07
5,350 Btu, 1.55kW, 6' heater P1@5.00 Ea 306.03 198.40 504.43
7,200 Btu, 2.0kW, 8' heater P1@5.25 Ea 381.78 208.30 590.08
9,050 Btu, 2.65kW, 9' heater P1@5.50 Ea 410.06 218.20 628.26
11,900 Btu, 3.5kW, 10' heater P1@5.75 Ea 470.66 228.10 698.76

Central coal- or wood-burning furnace. Connected to existing ductwork and chimney flue. Triple flue
heat exchanger, refractory lined chamber holds logs from 22" to 32" in diameter. Includes fan lift switch,
blower system, cast iron grate, automatic controlled damper and removal of the existing furnace.
Furnace P1@25.8 Ea 2,858.30 1,023.00 3,881.30

Gas floor furnace. Includes thermostat, electrical connection, gas piping, flue and valve. Add the cost
of interior and exterior patching.
35,000 Btu, pilot ignition P1@9.00 Ea 659.53 357.00 1,016.53
35,000 Btu, spark ignition P1@9.00 Ea 782.75 357.00 1,139.75
50,000 Btu, pilot ignition P1@9.50 Ea 734.27 376.90 1,111.17
50,000 Btu, spark ignition P1@9.50 Ea 856.48 376.90 1,233.38
65,000 Btu, pilot ignition P1@10.0 Ea 851.43 396.70 1,248.13
65,000 Btu, spark ignition P1@10.0 Ea 991.82 396.70 1,388.52

Gas wall furnace. Includes thermostat, electrical connection, gas piping, valve, blower and debris
removal. Add the cost of wall, ceiling and roof patching. Two room (rear grille) units have one thermostat
and control the temperature in one room only. For a room under 300 square feet, a 25,000 Btu furnace
usually has enough capacity if ceiling height is 8' or less.
25,000 Btu, pilot ignition P1@9.00 Ea 556.51 357.00 913.51
25,000 Btu, spark ignition P1@9.00 Ea 556.51 357.00 913.51
40,000 Btu, pilot ignition P1@9.50 Ea 689.83 376.90 1,066.73
40,000 Btu, spark ignition P1@9.50 Ea 856.48 376.90 1,233.38
50,000 Btu, pilot ignition P1@9.50 Ea 719.12 376.90 1,096.02
50,000 Btu, spark ignition P1@9.50 Ea 883.75 376.90 1,260.65
60,000 Btu, pilot ignition P1@10.0 Ea 782.75 396.70 1,179.45
60,000 Btu, spark ignition P1@10.0 Ea 959.50 396.70 1,356.20
Add for dual wall unit (2 rooms) P1@6.00 Ea 661.55 238.00 899.55

Thru-the-wall gas furnace. Includes thermostat, electrical connection, gas piping, valve, direct exterior
wall vent and debris removal. Pilot ignition. Add the cost of interior and exterior wall patching if needed.
100 square foot room, 14,000 Btu P1@8.00 Ea 568.63 317.40 886.03
150 square foot room, 22,000 Btu P1@8.50 Ea 615.09 337.20 952.29
200 square foot room, 25,000 Btu P1@9.00 Ea 645.39 357.00 1,002.39
250 square foot room, 30,000 Btu P1@9.00 Ea 678.72 357.00 1,035.72
300 square foot room, 40,000 Btu P1@9.50 Ea 740.33 376.90 1,117.23
400 square foot room, 65,000 Btu P1@10.0 Ea 903.95 396.70 1,300.65
