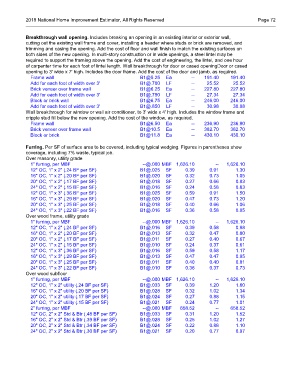

2018 National Home Improvement Estimator, All Rights Reserved Page 72

Breakthrough wall opening. Includes breaking an opening in an existing interior or exterior wall,
cutting out the existing wall frame and cover, installing a header where studs or brick are removed, and
trimming and casing the opening. Add the cost of floor and wall finish to match the existing surfaces on
both sides of the new opening. In multi-story construction or in wide openings, a steel lintel may be
required to support the framing above the opening. Add the cost of engineering, the lintel, and one hour
of carpenter time for each foot of lintel length. Wall breakthrough for door or cased openingDoor or cased
opening to 3' wide x 7' high. Includes the door frame. Add the cost of the door and jamb, as required.
Frame wall B1@5.25 Ea -- 191.40 191.40
Add for each foot of width over 3' B1@.700 LF -- 25.52 25.52
Brick veneer over frame wall B1@6.25 Ea -- 227.80 227.80
Add for each foot of width over 3' B1@.750 LF -- 27.34 27.34
Block or brick wall B1@6.75 Ea -- 246.00 246.00
Add for each foot of width over 3' B1@.850 LF -- 30.98 30.98
Wall breakthrough for window or wall air conditioner, to 3' wide x 4' high. Includes the window frame and
cripple stud fill below the new opening. Add the cost of the window, as required.
Frame wall B1@6.50 Ea -- 236.90 236.90
Brick veneer over frame wall B1@10.5 Ea -- 382.70 382.70
Block or brick B1@11.8 Ea -- 430.10 430.10

Furring. Per SF of surface area to be covered, including typical wedging. Figures in parentheses show
coverage, including 7% waste, typical job.
Over masonry, utility grade
1" furring, per MBF --@.000 MBF 1,626.10 -- 1,626.10
12" OC, 1" x 2" (.24 BF per SF) B1@.025 SF 0.39 0.91 1.30
16" OC, 1" x 2" (.20 BF per SF) B1@.020 SF 0.32 0.73 1.05
20" OC, 1" x 2" (.17 BF per SF) B1@.018 SF 0.27 0.66 0.93
24" OC, 1" x 2" (.15 BF per SF) B1@.016 SF 0.24 0.58 0.83
12" OC, 1" x 3" (.36 BF per SF) B1@.025 SF 0.59 0.91 1.50
16" OC, 1" x 3" (.29 BF per SF) B1@.020 SF 0.47 0.73 1.20
20" OC, 1" x 3" (.25 BF per SF) B1@.018 SF 0.40 0.66 1.06
24" OC, 1" x 3" (.22 BF per SF) B1@.016 SF 0.36 0.58 0.95
Over wood frame, utility grade
1" furring, per MBF --@.000 MBF 1,626.10 -- 1,626.10
12" OC, 1" x 2" (.24 BF per SF) B1@.016 SF 0.39 0.58 0.98
16" OC, 1" x 2" (.20 BF per SF) B1@.013 SF 0.32 0.47 0.80
20" OC, 1" x 2" (.17 BF per SF) B1@.011 SF 0.27 0.40 0.67
24" OC, 1" x 2" (.15 BF per SF) B1@.010 SF 0.24 0.37 0.61
12" OC, 1" x 3" (.36 BF per SF) B1@.016 SF 0.59 0.58 1.17
16" OC, 1" x 3" (.29 BF per SF) B1@.013 SF 0.47 0.47 0.95
20" OC, 1" x 3" (.25 BF per SF) B1@.011 SF 0.40 0.40 0.81
24" OC, 1" x 3" (.22 BF per SF) B1@.010 SF 0.36 0.37 0.73
Over wood subfloor
1" furring, per MBF --@.000 MBF 1,626.10 -- 1,626.10
12" OC, 1" x 2" utility (.24 BF per SF) B1@.033 SF 0.39 1.20 1.60
16" OC, 1" x 2" utility (.20 BF per SF) B1@.028 SF 0.32 1.02 1.34
20" OC, 1" x 2" utility (.17 BF per SF) B1@.024 SF 0.27 0.88 1.15
24" OC, 1" x 2" utility (.15 BF per SF) B1@.021 SF 0.24 0.77 1.01
2" furring, per MBF --@.000 MBF 658.52 -- 658.52
12" OC, 2" x 2" Std & Btr (.48 BF per SF) B1@.033 SF 0.31 1.20 1.52
16" OC, 2" x 2" Std & Btr (.39 BF per SF) B1@.028 SF 0.25 1.02 1.27
20" OC, 2" x 2" Std & Btr (.34 BF per SF) B1@.024 SF 0.22 0.88 1.10
24" OC, 2" x 2" Std & Btr (.30 BF per SF) B1@.021 SF 0.20 0.77 0.97
