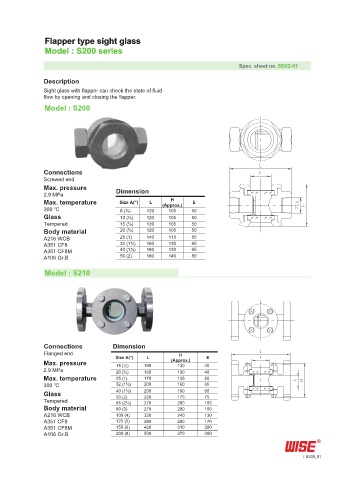

Page 187 - 2019종합카다로그_FLD

Flapper type sight glass
Model : S200 series

Spec. sheet no. SD02-01

Description
Sight glass with flapper can check the state of fluid
flow by opening and closing the flapper.
Model : S200

Connections
Screwed end
Max. pressure Dimension
2.9 MPa
Max. temperature Size A(") L H E
300 ℃ 8 (¼) 120 (Approx.) 50
105
Glass 10 (⅜) 120 105 50
Tempered 15 (½) 120 105 50
Body material 20 (¾) 120 105 50
A216 WCB 25 (1) 140 115 50
A351 CF8 32 (1¼) 160 130 65
A351 CF8M 40 (1½) 160 130 65
A106 Gr.B 50 (2) 180 140 80

Model : S210

Connections Dimension
Flanged end
Size A(") L H E
Max. pressure 15 (½) 160 (Approx.) 40
130
2.9 MPa 20 (¾) 160 130 40
Max. temperature 25 (1) 170 135 50
300 ℃ 32 (1¼) 200 160 65
Glass 40 (1½) 200 160 65
Tempered 50 (2) 220 175 75
270
105
200
65 (2½)
Body material 80 (3) 270 200 105
A216 WCB 100 (4) 320 240 130
A351 CF8 125 (5) 380 280 170
A351 CF8M 150 (6) 420 310 200
A106 Gr.B 200 (8) 500 370 260
S200_01
