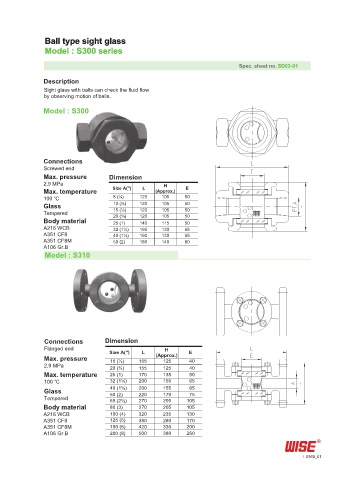

Ball type sight glass
Model : S300 series

Spec. sheet no. SD03-01

Description
Sight glass with balls can check the fluid flow
by observing motion of balls.
Model : S300

Connections
Screwed end
Max. pressure Dimension
2.9 MPa H
Max. temperature Size A(") L (Approx.) E
100 ℃ 8 (¼) 120 105 50
Glass 10 (⅜) 120 105 50
Tempered 15 (½) 120 105 50
20 (¾)
120
105
50
Body material 25 (1) 140 115 50
A216 WCB 32 (1¼) 160 130 65
A351 CF8 40 (1½) 160 130 65
A351 CF8M 50 (2) 180 140 80
A106 Gr.B
Model : S310

Connections Dimension
Flanged end H
Size A(") L E
Max. pressure 15 (½) 155 (Approx.) 40
125
2.9 MPa
20 (¾) 155 125 40
Max. temperature 25 (1) 170 135 50
100 ℃ 32 (1¼) 200 155 65
Glass 40 (1½) 200 155 65
75
Tempered 50 (2) 220 170 105
205
65 (2½)
270
Body material 80 (3) 270 205 105
A216 WCB 100 (4) 320 235 130
A351 CF8 125 (5) 380 280 170
A351 CF8M 150 (6) 420 330 200
A106 Gr.B 200 (8) 500 380 260

S300_01
