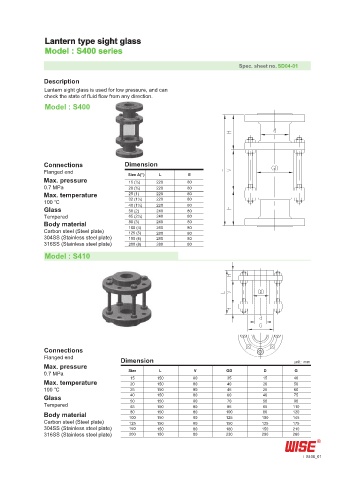

Lantern type sight glass
Model : S400 series

Spec. sheet no. SD04-01

Description
Lantern sight glass is used for low pressure, and can
check the state of fluid flow from any direction.
Model : S400

Connections Dimension
Flanged end Size A(") L E
Max. pressure 15 (½) 220 80
0.7 MPa 20 (¾) 220 80
Max. temperature 25 (1) 220 80
100 ℃ 32 (1¼) 220 80
80
220
40 (1½)
Glass 50 (2) 240 80
Tempered 65 (2½) 240 80
Body material 80 (3) 240 80
Carbon steel (Steel plate) 100 (4) 260 80
125 (5)
80
280
304SS (Stainless steel plate) 150 (6) 280 80
316SS (Stainless steel plate) 200 (8) 280 80
Model : S410

Connections
Flanged end Dimension
Max. pressure unit : mm
0.7 MPa Size L V GD D G
Max. temperature 15 150 80 35 15 40
150
80
40
20
50
20
100 ℃ 25 150 80 45 25 60
Glass 40 150 80 60 40 75
90
Tempered 50 150 80 70 50 110
85
65
80
65
150
80
80
Body material 100 150 80 100 100 120
150
145
125
80
Carbon steel (Steel plate) 125 150 80 150 125 175
304SS (Stainless steel plate) 150 150 80 180 150 210
316SS (Stainless steel plate) 200 150 80 230 200 260
S400_01
