Service Area

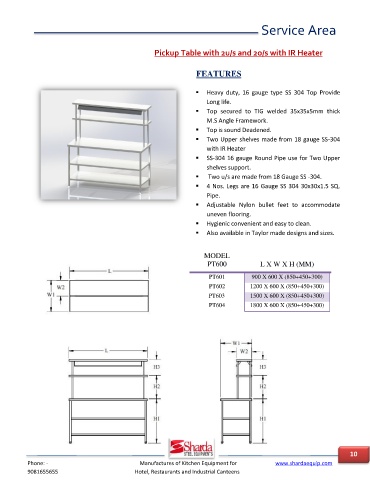

Pickup Counter with 2u/s and 2o/s IR Heater

FEATURES

 Heavy duty, 16 gauge type SS 304 Top Provide
Long life.
 Top secured to TIG welded 35x35x5mm thick
M.S Angle Framework.

 Top is sound Deadened.
 Two Upper shelves made from 18 gauge SS-304
with IR Heater
 SS-304 16 gauge Round Pipe use for Two Upper
shelves support.

 Two u/s are made from 18 Gauge SS -304 with
18 gauge SS-304 Three side covering.
 4 Nos. Legs are 16 Gauge SS 304 30x30x1.5 SQ.
Pipe.
 Adjustable Nylon bullet feet to accommodate

uneven flooring.
 Hygienic convenient and easy to clean.
 Also available in Taylor made designs and sizes.

MODEL

PC600 L X W X H (MM)
PC601 900 X 600 X (850+450+300)
PC602 1200 X 600 X (850+450+300)

PC603 1500 X 600 X (850+450+300)
PC604 1800 X 600 X (850+450+300)
