Service Area

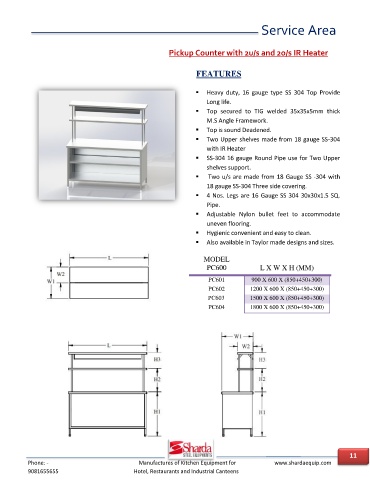

Pickup Counter/hot case/ 2o/s with IR Heater

FEATURES

 Heavy duty, 16 gauge type SS 304 Top Provide
Long life.
 Top secured to TIG welded 35x35x5mm thick

M.S Angle Framework.
 Top is sound Deadened.
 Two Upper shelves made from 18 gauge SS-304
with IR Heater
 SS-304 16 gauge Round Pipe use for Two Upper

shelves support.
 Below the Top provide hot case with insulation
and Three Side covering made from 18 gauges
SS-304 also front side providing sliding doors
made from 16 gauges SS-304.

 For Heating Purpose use 3 KW Electrical Heater
with provide control panel.
 4 Nos. Legs are 16 Gauge SS 304 30x30x1.5 SQ.
Pipe.

 Adjustable Nylon bullet feet to accommodate

uneven flooring.
 Hygienic convenient and easy to clean.
 Also available in Taylor made designs and sizes.

MODEL
PCH600 L X W X H (MM)
PCH601 1200 X 600 X (850+450+300)

PCH605 1500 X 600 X (850+450+300)
PCH603 1800 X 600 X (850+450+300)
