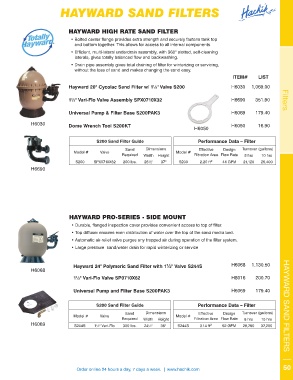

Page 73 - 2018 Hachik Catalog

HAYWARD SAND FILTERS

HAYWARD HIGH RATE SAND FILTER

• Bolted center flange provides extra strength and securely fastens tank top
and bottom together. This allows for access to all internal components.
• Efficient, multi-lateral underdrain assembly, with 360° slotted, self-cleaning
laterals, gives totally balanced flow and backwashing.
• Drain pipe assembly gives total draining of filter for winterizing or servicing,
without the loss of sand and makes changing the sand easy.
ITEM# LIST

Hayward 20" Cycolac Sand Filter w/ 1½" Valve S200 H6030 1,069.00
Filters 1½" Vari-Flo Valve Assembly SPX0710X32 H6690 351.90 Filters

Universal Pump & Filter Base S200PAK3 H6069 179.40
Filters
H6030 Dome Wrench Tool S200KT H6050 H6050 16.90

S200 Sand Filter Guide Performance Data – Filter
Sand Dimensions Effective Design Turnover (gallons)
Model # Valve Model #
Required Width Height Filtration Area Flow Rate 8 hrs 10 hrs
S200 SPX0710X32 200 lbs. 23½" 37" S200 2.20 ft 2 44 GPM 21,120 26,400
H6690

HAYWARD PRO-SERIES - SIDE MOUNT
• Durable, flanged inspection cover provides convenient access to top of filter.
• Top diffuser ensures even distribution of water over the top of the sand media bed.
• Automatic air-relief valve purges any trapped air during operation of the filter system.
• Large pressure sand/water drain for rapid winterizing or service

Hayward 24" Polymeric Sand Filter with 1½" Valve S244S H6068 1,130.50
H6068
1½" Vari-Flo Valve SP0710X62 H8016 200.70

Universal Pump and Filter Base S200PAK3 H6069 179.40

S200 Sand Filter Guide Performance Data – Filter HAYWARD SAND FILTERS
Sand Dimensions Effective Design Turnover (gallons)
Model # Valve Model #
Required Width Height Filtration Area Flow Rate 8 hrs 10 hrs
H6069 S244S 1½" Vari-Flo 300 lbs. 24½" 36" S244S 3.14 ft 2 62 GPM 29,760 37,200
