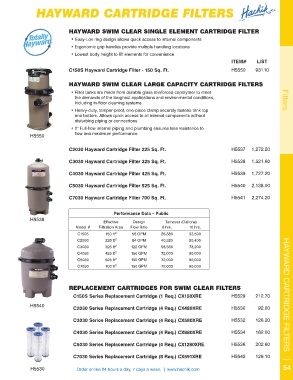

Page 77 - 2018 Hachik Catalog
P. 77

HAYWARD CARTRIDGE FILTERS



                              HAYWARD SWIM CLEAR SINGLE ELEMENT CARTRIDGE FILTER

                               • Easy-Lok ring design allows quick access to internal components
                               • Ergonomic grip handles provide multiple handling locations
                               • Lowest body height to lift elements for convenience
                                                                                                  ITEM#      LIST

                              C150S Hayward Cartridge Filter - 150 Sq. Ft.                        H5550     931.10

                              HAYWARD SWIM CLEAR LARGE CAPACITY CARTRIDGE FILTERS
 Filters                       •   Filter tanks are made from durable glass reinforced copolymer to meet               Filters
                                the demands of the toughest applications and environmental conditions,
                                including in-floor cleaning systems.
                               •  Heavy-duty, tamper-proof, one-piece clamp securely fastens tank top
                                                                                                                       Filters
                                and bottom. Allows quick access to all internal components without
                                disturbing piping or connections.
                               •  2" Full-flow internal piping and plumbing ensures less resistance to
              H5550             flow and maximum performance.

                              C2030 Hayward Cartridge Filter 225 Sq. Ft.                          H5537   1,272.20

                              C3030 Hayward Cartridge Filter 325 Sq. Ft.                          H5538   1,521.60

                              C4030 Hayward Cartridge Filter 425 Sq. Ft.                          H5539   1,727.20


                              C5030 Hayward Cartridge Filter 525 Sq. Ft.                          H5540   2,138.00

                              C7030 Hayward Cartridge Filter 700 Sq. Ft.                          H5541   2,274.20


                                                 Performance Data – Public
              H5538                         Effective    Design       Turnover (Gallons)
                                 Model #  Filtration Area  Flow Rate  8 hrs.    10 hrs.
                                 C1505       150 ft 2   56 GPM      26,880      33,500
                                 C2030       225 ft 2   84 GPM      40,320      50,400
                                 C3030       325 ft 2   122 GPM     58,560      73,200
                                 C4030       425 ft 2   150 GPM     72,000      90,000
                                 C5030       525 ft 2   150 GPM     72,000      90,000
                                 C7030       700 ft 2   150 GPM     72,000      90,000



                              REPLACEMENT CARTRIDGES FOR SWIM CLEAR FILTERS
                                C150S Series Replacement Cartridge (1 Req.) CX150XRE              H5529     212.70      HAYWARD CARTRIDGE FILTERS

              H5540
                                C2030 Series Replacement Cartridge (4 Req.) CX480XRE              H5530      92.00

                                C3030 Series Replacement Cartridge (4 Req.) CX580XRE              H5532     126.20

                                C4030 Series Replacement Cartridge (4 Req.) CX880XRE              H5534     162.00

                                C5030 Series Replacement Cartridge (4 Req.) CX1280XRE             H5536     202.60

                                C7030 Series Replacement Cartridge (8 Req.) CX591XRE              H5542     129.10

              H5530              Order online 24 hours a day, 7 days a week.  | www.hachik.com                         54
