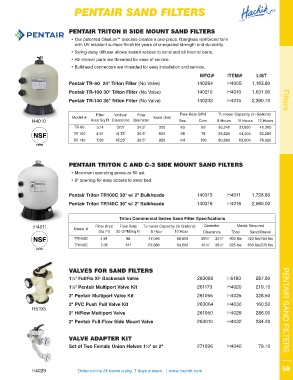

Page 81 - 2018 Hachik Catalog

PENTAIR SAND FILTERS

PENTAIR TRITON II SIDE MOUNT SAND FILTERS

• Our patented GlasLok™ process creates a one-piece, fiberglass reinforced tank
with UV resistant surface finish for years of unequaled strength and durability.
• Swing-away diffuser allows instant access to sand and all internal parts.
• All internal parts are threaded for ease of service.
• Bulkhead connectors are threaded for easy installation and service.
MFG# ITEM# LIST
Pentair TR-60 24" Triton Filter (No Valve) 140264 H4005 1,163.80
Pentair TR-100 30" Triton Filter (No Valve) 140210 H4010 1,631.90

Pentair TR-140 36" Triton Filter (No Valve) 140243 H4015 2,390.70 Filters

Filter Vertical Fliter Flow Rate GPM Turnover Capacity (In Gallons)
Model # Sand (lbs)
H4010 Area Sq Ft Clearance Diameter Res. Com. 8 Hours 10 Hours 12 Hours
TR 60 3.14 37.5" 24.5" 325 63 63 30,240 37,800 45.360
TR 100 4.91 41.75" 30.5" 600 98 74 35,520 44,400 53,280
TR 140 7.06 47.25" 36.5" 925 141 106 50,880 63,600 76,320

PENTAIR TRITON C AND C-3 SIDE MOUNT SAND FILTERS
• Maximum operating pressure 50 psi.
• 8" opening for easy access to sand bed.

Pentair Triton TR100C 30" w/ 2" Bulkheads 140315 H4011 1,728.80
Pentair Triton TR140C 36" w/ 2" Bulkheads 140316 H4016 2,560.00

Triton Commercial Series Sand Filter Specifications
H4011 Model # Filter Area Flow Rate Turnover Capacity (In Gallons) Diameter Media Required
(Sq Ft) 20 GPM/Sq Ft 8 Hour 10 Hour Clearance Total Sand/Gravel
TR100C 4.91 98 47,040 58,800 39¾" 30½" 600 lbs 450 lbs/150 lbs
TR140C 7.06 141 67,680 84,600 45¼" 36½" 925 lbs 650 lbs/275 lbs

VALVES FOR SAND FILTERS
1½" FullFlo XF Backwash Valve 263080 H5193 287.80
1½" Pentair Multiport Valve Kit 261173 H4020 219.10
2" Pentair Multiport Valve Kit 261055 H4025 328.50
2" PVC Push Pull Valve Kit 263064 H4030 160.50
H5193
2" HiFlow Multiport Valve 261050 H4029 286.00 PENTAIR SAND FILTERS
2" Pentair Full-Flow Side Mount Valve 263010 H4032 284.20

VALVE ADAPTER KIT

Set of Two Female Union Halves 1½" or 2" 271096 H4040 79.10

H4029 Order online 24 hours a day, 7 days a week. | www.hachik.com 58
