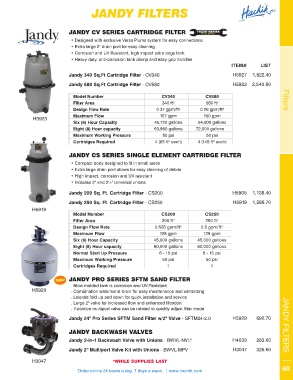

Page 83 - 2018 Hachik Catalog

JANDY FILTERS

JANDY CV SERIES CARTRIDGE FILTER
• Designed with exclusive Versa Plums system for easy connections
• Extra large 2" drain port for easy cleaning
• Corrosion and UV Resistant, high impact extra large tank
• Heavy duty, anti-corrosion tank clamp and easy grip handles
ITEM# LIST

Jandy 340 Sq.Ft Cartridge Filter - CV340 H5927 1,822.40
Jandy 580 Sq.Ft Cartridge Filter - CV580 H5923 2,540.80

Model Number CV340 CV580
Filter Area 340 ft² 580 ft² Filters
Design Flow Rate 0.37 gpm/ft² 0.26 gpm/ft²
Maximum Flow 127 gpm 150 gpm
H5923
Six (6) Hour Capacity 45,720 gallons 54,000 gallons
Eight (8) Hour capacity 60,960 gallons 72,000 gallons
Maximum Working Pressure 50 psi 50 psi
Cartridges Required 4 (85 ft² each) 4 (145 ft² each)

JANDY CS SERIES SINGLE ELEMENT CARTRIDGE FILTER
• Compact body designed to fit in small areas
• Extra large drain port allows for easy cleaning of debris
• High impact, corrosion and UV resistant
• Includes 2" and 2½" universal unions

Jandy 200 Sq. Ft. Cartridge Filter - CS200 H5905 1,138.40
Jandy 250 Sq. Ft. Cartridge Filter - CS250 H5919 1,286.70
H5919
Model Number CS200 CS250
Filter Area 200 ft² 250 ft²
Design Flow Rate 0.625 gpm/ft² 0.5 gpm/ft²
Maximum Flow 125 gpm 125 gpm
Six (6) Hour Capacity 45,000 gallons 45,000 gallons
Eight (8) Hour capacity 60,000 gallons 60,000 gallons
Normal Start Up Pressure 6 - 15 psi 6 - 15 psi
Maximum Working Pressure 50 psi 50 psi
Cartridges Required 1 1

JANDY PRO SERIES SFTM SAND FILTER
. Blow molded tank is corrosion and UV-Resistant
H5929 . Combination water/sand drain for easy maintenance and winterizing
. Laterals fold up and down for quick installation and service
. Large 2" valve for increased flow and enhanced filtration
. 7-postion multiport valve can be rotated to quickly adjust filter mode
Jandy 24" Pro Series SFTM Sand Filter w/2" Valve - SFTM24-2.0 H5929 692.70

JANDY BACKWASH VALVES JANDY FILTERS
Jandy 2-in-1 Backwash Valve with Unions - BWVL-NVL* H4033 283.60
Jandy 2" Multiport Valve Kit with Unions - BWVL-MPV H3047 325.60

H3047 *WHILE SUPPLIES LAST
60
Order online 24 hours a day, 7 days a week. | www.hachik.com
