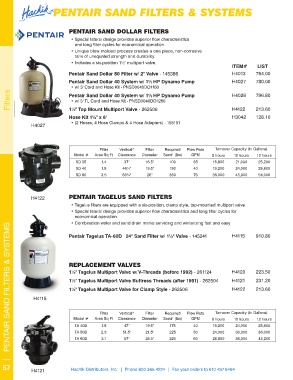

Page 80 - 2018 Hachik Catalog

PENTAIR SAND FILTERS & SYSTEMS

PENTAIR SAND DOLLAR FILTERS

• Special lateral design provides superior flow characteristics
and long filter cycles for economical operation.
• Unique blow molded process creates a one piece, non-corrosive
tank of unequaled strength and durability.
• Includes a six-position 1½" multiport valve.
ITEM# LIST
Pentair Sand Dollar 80 Filter w/ 2" Valve - 145386 H4013 764.00
Pentair Sand Dollar 40 System w/ 1½ HP Dynamo Pump H4027 780.00
• w/ 3' Cord and Hose Kit - PNSD0040DO1160
Filters Pentair Sand Dollar 40 System w/ 1½ HP Dynamo Pump H4028 796.80

• w/ 3' TL Cord and Hose Kit - PNSD0040DO1260
H4122
213.60
1½" Top Mount Multiport Valve - 262506
Hose Kit 1½" x 6" H3042 128.10
• (2 Hoses, 4 Hose Clamps & 4 Hose Adapters) - 155151
H4027

Filter Vertical* Filter Required Flow Rate Turnover Capacity (In Gallons)
Model # Area Sq Ft Clearance Diameter Sand (lbs) GPM 8 hours 10 hours 12 hours
†
SD 35 1.4 37" 16.5" 100 35 16,800 21,000 25,200
SD 40 1.8 46¼" 19.5" 150 40 19,200 24,000 28,800
SD 80 3.5 65¾" 26" 350 75 36,000 45,000 54,000

H4122 PENTAIR TAGELUS SAND FILTERS
• Tagelus filters are equipped with a six-position, clamp style, top-mounted multiport valve.
• Special lateral design provides superior flow characteristics and long filter cycles for
economical operation.
• Combination water and sand drain marks servicing and winterizing fast and easy
PENTAIR SAND FILTERS & SYSTEMS

Pentair Tagelus TA-60D 24" Sand Filter w/ 1½" Valve - 145241 H4115 910.80

REPLACEMENT VALVES
1½" Tagelus Multiport Valve w/ V-Threads (before 1992) - 261124 H4120 223.50
1½" Tagelus Multiport Valve Buttress Threads (after 1991) - 262504 H4121 231.20

1½" Tagelus Multiport Valve for Clamp Style - 262506 H4122 213.60
H4115

Filter Vertical* Filter Required Flow Rate Turnover Capacity (In Gallons)
Model # Area Sq Ft Clearance Diameter Sand (lbs) GPM 8 hours 10 hours 12 hours
†
TA 40D 1.8 47" 19.5" 175 40 19,200 24,000 28,800
TA 50D 2.3 51.5" 21.5" 225 50 24,000 30,000 36,000
TA 60D 3.1 57" 24.5" 325 60 28,800 36,000 43,200

57 H4121 Hachik Distributors, Inc. | Phone 800.365.4224 | Fax your orders to 610.497.6464
