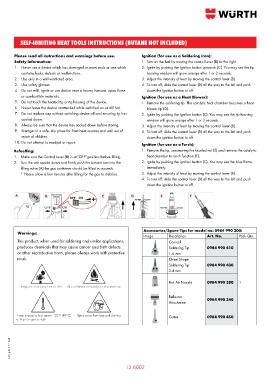

Page 1074 - Wurth Total Catalogue

SELF-IGNITING HEAT TOOLS INSTRUCTIONS (BUTANE NOT INCLUDED)

Please read all instructions and warnings before use. Ignition (for use as a Soldering Iron):
Safety Information: 1. Turn on the fuel by moving the control lever (B) to the right.
1. Never use a device which has damaged or worn seals or one which 2. Ignite by pushing the ignition button upwards (C). You may see the tip
contains leaks, defects or malfunctions. housing window will grow orange after 1 or 2 seconds.
2. Use only in a well-ventilated area. 3. Adjust the intensity of heat by moving the control lever (B).
3. Use safety glasses. 4. To turn off, slide the control lever (B) all the way to the left and push
4. Do not refill, ignite or use device near a heater, furnace, open flame down the ignition button to off.
or combustible materials. Ignition (for use as a Heat Blower):
5. Do not touch the heated tip or tip housing of the device. 1. Remove the soldering tip. The catalytic heat chamber becomes a heat
6. Never leave the device unattended while switched on or still hot. blower tip (D).
7. Do not replace cap without switching device off and ensuring tip has 2. Ignite by pushing the ignition button (C). You may see the tip housing
cooled down. window will grow orange after 1 or 2 seconds.
8. Always be sure that the device has cooled down before storing. 3. Adjust the intensity of heat by moving the control lever (B).
9. Storage: In a safe, dry place far from heat sources and well out of 4. To turn off, slide the control lever (B) all the way to the left and push
reach of children. down the ignition button to off.
10. Do not attempt to readjust or repair. Ignition (for use as a Torch):
Refuelling: 1. Remove the tip, unscrewing the knurled nut (E) and remove the catalytic
1. Make sure the Control Lever (B) is at "OFF" position before filling. heat chamber to torch function (F).
2. Turn the unit upside down and firmly push the butane can into the 2. Ignite by pushing the ignition button (C). You may see the blue flame
filling valve (A) the gas container should be filled in seconds. immediately.
* Please allow a few minutes after filling for the gas to stabilise. 3. Adjust the intensity of heat by moving the control lever (B).
4. To turn off, slide the control lever (B) all the way to the left and push
down the ignition button to off.

TIGHTEN LOOSEN

Accessories/Spare Tips for model no: 0984 990 300:
Warnings:
Image Description Art. No. Pack Qty.
This product, when used for soldering and similar applications, Conical
produces chemicals that may cause cancer and birth defects Soldering Tip 0984 990 410
or other reproductive harm, please always work with protective 1.6 mm
mask. Chisel-Shape
Soldering Tip 0984 990 430
2.4 mm

Hot Air Nozzle 0984 990 380 1

Reflector
Attachment 0984 990 340

Cutter 0984 990 450
