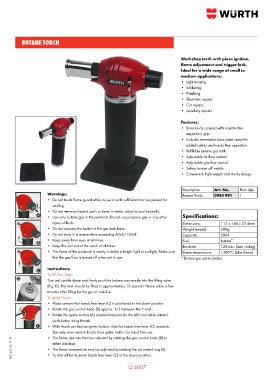

Page 1075 - Wurth Total Catalogue

butane torch

Workshop torch with piezo ignition,
flame adjustment and trigger-lock.
Ideal for a wide range of small to
medium applications:
• Light brazing.
• Soldering.
• Plumbing.
• Electronic repairs.
• Car repairs.
• Jewellery repairs.

Features:
• Brass body covered with a protective
ergonomic grip.
• Includes removable base plate stand for
added safety and hands free operation.
• Refillable butane gas tank.
• Adjustable air flow control.
• Adjustable gas flow control.
• Safety 'instant off' switch.
• Convenient, light weight and sturdy design.

Description Art. No. Pack Qty.
Warnings: Butane Torch 0984 991 1
• Do not touch flame guard while in use or until sufficient time has passed for
cooling.
• Do not immerse heated parts or items in water, allow to cool naturally.
• Use only butane gas in the pro-torch. Do not use propane gas or any other Specifications:
types of fluids. Dimensions: 112 x 148 x 37.5mm
• Do not unscrew the button in the gas tank base. Weight (empty): 400g
• Do not store in a temperature exceeding 40oC/104oF. Capacity: 50ml
• Keep away from eyes at all times. Fuel: Butane *
• Keep this unit out of the reach of children. Burntime: 120 min. (mid. setting)
• The flame of the pro-torch is nearly invisible in bright light or sunlight. Make sure Flame temperature: 1300ºC (blue flame)
that the gas flow is turned off when not in use. * Butane gas not included.

Instructions:
To Fill Gas Tank:
Turn unit upside down and firmly push the butane can nozzle into the filling valve
(Fig. D). The tank should be filled in approximately 15 seconds Please allow a few
minutes after filling for the gas to stabilise.
To Ignite Torch:
• Make certain that hands free lever (C) is positioned in the down position.
• Rotate the gas control knob (B) approx. 1/2 between the + and -.
• Rotate the igniter button (A) counterclockwise (to the left) and while rotated,
push button using thumb.
• With thumb pushed on igniter button, slide the hands free lever (C) upwards.
You may now remove thumb from igniter button for hand free use.
• The flame size can then be adjusted by rotating the gas control knob (B) in
AUS. pub. 06/13 © • The flame temperature may be adjusted by rotating the air control ring (E).
either direction.

• To shut off torch, move hands free lever (C) to the down position.
