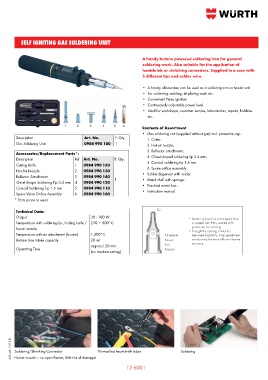

Page 1073 - Wurth Total Catalogue

SELF IGNITING GAS SOLDERING UNIT

A handy butane powered soldering iron for general
soldering work. Also suitable for the application of
heatshrink or shrinking connectors. Supplied in a case with
5 different tips and solder wire.

• A handy all-rounder, can be used as a soldering iron or hot-air unit.
• For soldering, welding, tin-plating work etc.
• Convenient Piezo ignition.
• Continuously adjustable power level.
• Ideal for workshops, customer service, laboratories, repairs, hobbies
etc..
1 2 3 4 5 6 Contents of Assortment
• Gas soldering unit (supplied without gas) incl. protective cap.
Description Art. No. P. Qty. 1. Cutter
Gas Soldering Unit 0984 990 100 1 2. Hot-air nozzle,
3. Reflector attachment,
Accessories/Replacement Parts*:
Description Ref Art. No. P. Qty. 4. Chisel-shaped soldering tip 2.4 mm,
Cutting Knife 1 0984 990 150 5. Conical soldering tip 1.6 mm.
Hot Air Nozzle 2 0984 990 130 6. Spare orifice assembly.
Reflector Attachment 3 0984 990 140 • Solder dispenser with solder.
Chisel-Shape Soldering Tip 2.4 mm 4 0984 990 120 1 • Metal shell with sponge.
Conical Soldering Tip 1.6 mm 5 0984 990 110 • Practical metal box.
Spare Valve Orifice Assembly 6 0984 990 160 • Instruction manual.
* Parts prone to wear

Technical Data:
Output 30 - 100 W
Temperature with soldering tip /cutting knife / 250 500°C
~
hot-air nozzle
Temperature without attachment (burner) 1,300°C
Butane Gas intake capacity 20 ml
approx.120 min.
Operating Time
(on medium setting)

AUS. pub. 11/16 © Hot-air nozzle – no open flames, little risk of damage! Thin-walled heat-shrink tubes Soldering
Soldering/Shrinking Connector
