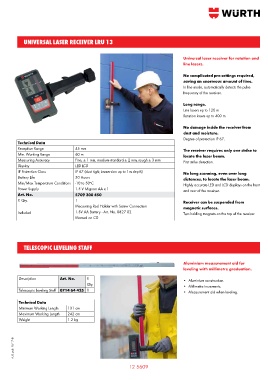

Page 1068 - Wurth Total Catalogue

UNIVERSAL LASER RECEIVER LRU 13

Universal laser receiver for rotation and
line lasers.

No complicated pre-settings required,
saving an enormous amount of time.
In line mode, automatically detects the pulse
frequency of the receiver.

Long range.
Line lasers up to 120 m
Rotation lasers up to 400 m

No damage inside the receiver from
dust and moisture.
Degree of protection IP 67.
Technical Data
Reception Range 45 mm The receiver requires only one strike to
Min. Working Range 60 m locate the laser beam.
Measuring Accuracy Fine, ± 1 mm, medium-standard ± 2 mm, rough ± 3 mm First strike detection.
Display LED LCD
IP Protection Class IP 67 (dust tight, immersion up to 1m depth) No long scanning, even over long
Battery Life 50 Hours distances, to locate the laser beam.
Min/Max Temperature Conditions -10 to 50 C Highly accurate LED and LCD displays on the front
o
Power Supply 1.5 V Mignon AA x 1 and rear of the receiver.
Art. No. 5709 300 450
P. Qty. 1 Receiver can be suspended from
Measuring Rod Holder with Screw Connection magnetic surfaces.
Included 1.5V AA Battery - Art. No. 0827 02 Two holding magnets on the top of the receiver.
Manual on CD

TELESCOPIC LEVELING STAFF

Aluminium measurement aid for
leveling with millimetre graduation.
Description Art. No. P. • Aluminium construction.
Qty. • Millimetre increments.
Telescopic Leveling Staff 0714 64 425 1 • Measurement aid when leveling.

Technical Data
Minimum Working Length 131 cm
Maximum Working Length 242 cm
Weight 1.2 kg
