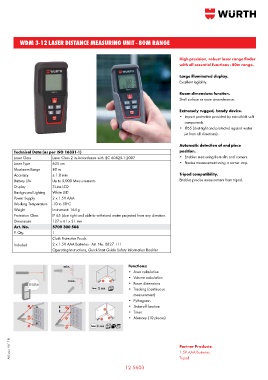

Page 1063 - Wurth Total Catalogue

WDM 3-12 LASER DISTANCE MEASURING UNIT - 80M RANGE

High precision, robust laser range finder
with all essential functions - 80m range.

Large illuminated display.
Excellent legibility.

Room dimensions function.
Shell surface or room circumference.

Extremely rugged, handy device.
• Impact protection provided by extra-thick soft
components.
• IP65 (dust-tight and protected against water
jet from all directions).

Automatic detection of end piece
Technical Data (as per ISO 16331-1) position.
Laser Class Laser Class 2 in Accordance with IEC 60825-1:2007 • Enables measuring from slits and corners.
Laser Type 635 nm • Precise measurement using a corner stop.
Maximum Range 80 m
Accuracy ± 1.0 mm Tripod compatibility.
Battery Life Up to 5,000 Measurements Enables precise measurement from tripod.
Display 3-Line LCD
Background Lighting White LED
Power Supply 2 x 1.5V AAA
Working Temperature -10 to 50 C
o
Weight Instrument: 164 g
Protection Class IP 65 (dust tight and able to withstand water projected from any direction.
Dimensions 127 x 61 x 31 mm
Art. No. 5709 300 508
P. Qty. 1
Cloth Protective Pouch
Included 2 x 1.5V AAA Batteries - Art. No. 0827 111
Operating Instructions, Quick-Start Guide Safety Information Booklet

Functions:
• Area calculation
• Volume calculation
• Room dimensions
• Tracking (continuous
measurement)
• Pythagoras
• Stake-off function
• Timer
• Memory (10 places)

AUS. pub. 10/17 © Partner Products:

1.5V AAA Batteries.
Tripod
