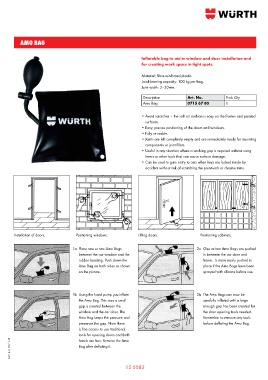

Page 1060 - Wurth Total Catalogue
P. 1060
AMO BAG
Inflatable bag to aid in window and door installation and
for creating work space in tight spots.
Material: Fibre-reinforced plastic.
Load-bearing capacity: 100 kg per bag.
Joint width: 3–50mm.
Description Art. No. Pack Qty.
Amo Bag 0715 67 80 1
• Avoid scratches – the soft air cushion is easy on the frames and painted
surfaces.
• Easy, precise positioning of the doors and windows.
• Fully re-usable.
• Joints are left completely empty and are immediately ready for mounting
components or joint fillers.
• Useful in any situation where a working gap is required without using
levers or other tools that can cause surface damage.
• Can be used to gain entry to cars when keys are locked inside by
accident without risk of scratching the paintwork or chrome trims.
Installation of doors. Positioning windows. Lifting doors. Positioning cabinets.
1a Place one or two Amo Bags 2a One or two Amo Bags are pushed
between the car window and the in between the car door and
rubber beading. Push down the frame. Is more easily pushed in
Amo Bag on both sides as shown place if the Amo Bags have been
on the picture. sprayed with silicone before use.
1b Using the hand pump you inflate 2b The Amo Bags can now be
the Amo Bag. This way a small carefully inflated until a large
gap is created between the enough gap has been created for
window and the car door. The the door opening tools needed.
Amo Bag keeps the pressure and Remember to remove any tools
preserves the gap. Now there before deflating the Amo Bag.
is fine access to use traditional
tools for opening doors and both
AUS. pub. 01/14 © Bag after deflating it.
hands are free. Remove the Amo
12 5582
