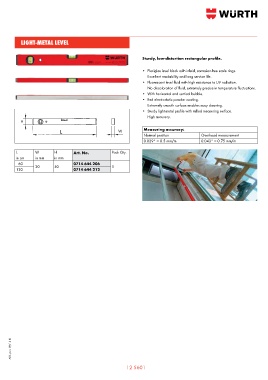

light-metal level
Sturdy, low-distortion rectangular profile.
• Plexiglas level block with inlaid, corrosion-free scale rings.
Excellent readability and long service life.
• Fluorescent level fluid with high resistance to UV radiation.
No discoloration of fluid, extremely precise in temperature fluctuations.
• With horizontal and vertical bubble.
• Red electrostatic powder coating.
Extremely smooth surface enables easy cleaning.
• Sturdy light-metal profile with milled measuring surface.
High accuracy.
H
W Measuring accuracy:
Normal position Overhead measurement
0.029° = 0.5 mm/m 0.043° = 0.75 mm/m
L W H Art. No. Pack Qty.
in cm in mm in mm
60 20 50 0714 644 206 1
120 0714 644 212
