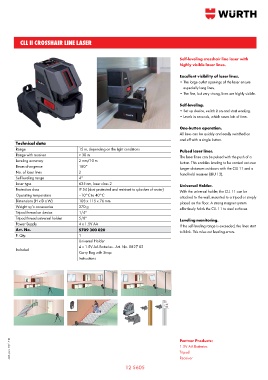

Page 1065 - Wurth Total Catalogue

CLL II CROSSHAIR LINE LASER

Self-leveling crosshair line laser with
highly visible laser lines.

Excellent visibility of laser lines.
• The large outlet openings of the laser ensure
especially long lines.
• The fine, but very strong, lines are highly visible.

Self-leveling.
• Set up device, switch it on and start working.
• Levels in seconds, which saves lots of time.

One-button operation.
All lines can be quickly and easily switched on
and off with a single button.
Technical data
Range 15 m, depending on the light conditions Pulsed laser lines.
Range with receiver > 30 m The laser lines can be pulsed with the push of a
Leveling accuracy 2 mm/10 m button. This enables leveling to be carried out over
Beam divergence 180° longer distances outdoors with the CLL 11 and a
No. of laser lines 2 hand-held receiver (LRU 13).
Self-leveling range 4°
Laser type 635 nm, laser class 2 Universal Holder.
Protection class IP 54 (dust protected and resistant to splashes of water) With the universal holder, the CLL 11 can be
Operating temperature –10°C to 40°C attached to the wall, mounted to a tripod or simply
Dimensions (H x D x W) 108 x 115 x 76 mm placed on the floor. A strong magnet system
Weight w/o accessories 370 g effortlessly holds the CLL 11 to steel surfaces.
Tripod thread on device 1/4"
Tripod thread universal holder 5/8" Leveling monitoring.
Power Supply 4 x 1.5V AA If the self-leveling range is exceeded, the lines start
Art. No. 5709 300 020 to blink. This rules out leveling errors.
P. Qty. 1
Universal Holder
4 x 1.5V AA Batteries - Art. No. 0827 02
Included
Carry Bag with Strap
Instructions

AUS. pub. 10/17 © Partner Products:
1.5V AA Batteries
Tripod
Receiver
