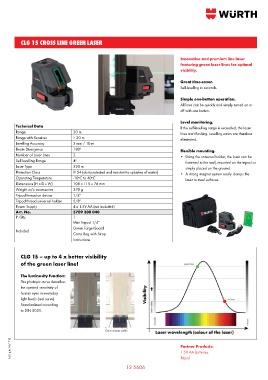

CLG 15 CROSS LINE GREEN LASER

Innovative and premium line laser
featuring green laser lines for optimal
visibility.

Great time-saver.
Self-levelling in seconds.

Simple one-button operation.
All lines can be quickly and simply turned on or
off with one button.

Level monitoring.
Technical Data If the self-levelling range is exceeded, the laser
Range 30 m lines start flashing. Levelling errors are therefore
Range with Receiver > 30 m eliminated.
Levelling Accuracy 3 mm / 10 m
Beam Divergence 180 o Flexible mounting.
Number of Laser Lines 2 • Using the universal holder, the laser can be
Self-levelling Range 4 o fastened to the wall, mounted on the tripod or
Laser Type 520 m simply placed on the ground.
Protection Class IP 54 (dust protected and resistant to splashes of water) • A strong magnet system easily clamps the
Operating Temperature -10 C to 40 C laser to steel surfaces.
o
o
Dimensions (H x D x W) 108 x 115 x 76 mm
Weight w/o accessories 370 g
Tripod thread on device 1/4"
Tripod thread universal holder 5/8"
Power Supply 4 x 1.5V AA (not included)
Art. No. 5709 300 040
P. Qty. 1
Mini Tripod 1/4"
Green Target Board
Included
Carry Bag with Strap
Instructions

CLG 15 – up to 4 x better visibility
of the green laser line!

The luminosity function:
The photopic curve describes
the spectral sensitivity of
human eyes in everyday
light levels (red curve).
Standardized according
to DIN 5031.

green/red comparison green/red in bright light
Green is better visible

AUS. pub. 10/17 © Partner Products:

1.5V AA Batteries.
Tripod
