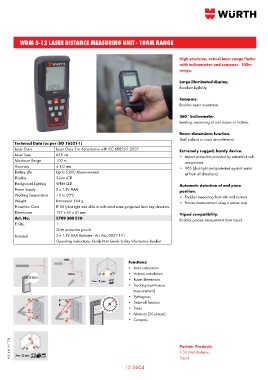

Page 1064 - Wurth Total Catalogue

WDM 5-12 LASER DISTANCE MEASURING UNIT - 100M RANGE

High precision, robust laser range finder
with inclinometer and compass - 100m
range.

Large illuminated display.
Excellent legibility.

Compass.
Enables exact orientation.

360° inclinometer.
Leveling, measuring of roof slopes or inclines.

Room dimensions function.
Shell surface or room circumference.
Technical Data (as per ISO 16331-1)
Laser Class Laser Class 2 in Accordance with IEC 60825-1:2007 Extremely rugged, handy device.
Laser Type 635 nm • Impact protection provided by extra-thick soft
Maximum Range 100 m components.
Accuracy ± 1.0 mm • IP65 (dust-tight and protected against water
Battery Life Up to 5,000 Measurements jet from all directions).
Display 3-Line LCD
Background Lighting White LED Automatic detection of end piece
Power Supply 2 x 1.5V AAA position.
Working Temperature -10 to 50 C • Enables measuring from slits and corners.
o
Weight Instrument: 164 g • Precise measurement using a corner stop.
Protection Class IP 65 (dust tight and able to withstand water projected from any direction.
Dimensions 127 x 61 x 31 mm Tripod compatibility.
Art. No. 5709 300 510 Enables precise measurement from tripod.
P. Qty. 1
Cloth protective pouch
Included 2 x 1.5V AAA Batteries - Art. No. 0827 111
Operating Instructions, Quick-Start Guide Safety Information Booklet

Functions:
• Area calculation
• Volume calculation
• Room dimensions
• Tracking (continuous
measurement)
• Pythagoras
• Stake-off function
• Timer
• Memory (20 places)
• Compass

AUS. pub. 10/17 © Partner Products:

1.5V AAA Batteries.
Tripod
