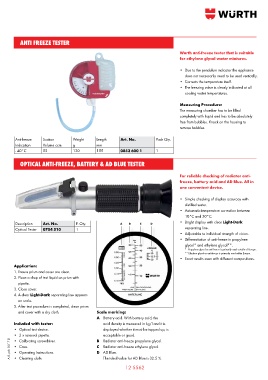

Page 1058 - Wurth Total Catalogue

ANTI FREEZE TESTER

Wurth anti-freeze tester that is suitable
for ethylene glycol water mixtures.

• Due to the pendulum indicator the appliance
does not necessarily need to be used vertically.
• Corrects the temperature itself.
• The freezing value is clearly indicated at all
cooling water temperatures.

Measuring Procedure:
The measuring chamber has to be filled
completely with liquid and has to be absolutely
free from bubbles. Knock on the housing to
remove bubbles.

Anti-freeze Suction Weight Length Art. No. Pack Qty.
Indication Volume ccm g mm
- 40°C 52 130 155 0853 600 1 1

OPTICAL ANTI-FREEZE, BATTERY & AD BLUE TESTER

For reliable checking of radiator anti-
freeze, battery acid and AD Blue. All in
one convenient device.

• Simple checking of display accuracy with
distilled water.
• Automatic temperature correction between
10°C and 30°C.
Description Art. No. P. Qty. A B C D • Bright display with clear Light-Dark
Optical Tester 0704 510 1 separating line.
• Adjustable to individual strength of vision.
• Differentiation of anti-freeze in propylene
glycol* and ethylene glycol**.
* Propylene glycol as anti-freeze is primarily used outside of Europe.
** Ethylene glycol as anti-freeze is primarily used within Europe.
• Exact results even with different compositions.
Application:
1. Ensure prism and cover are clean.
2. Place a drop of test liquid on prism with
pipette.
3. Close cover.
4. A clear Light-Dark separating line appears
on scale.
5. After test procedure is completed, clean prism
and cover with a dry cloth. Scale marking:
A Battery acid. With battery acid, the
Included with tester: acid density is measured in kg/l and it is
• Optical test device. displayed whether it must be topped up, is
• 2 x removal pipette. B Radiator anti-freeze propylene glycol.
acceptable or good.
AUS. pub. 02/17 © • Case. C Radiator anti-freeze ethylene glycol.
• Calibrating screwdriver.
• Operating Instructions.
D AD Blue.
• Cleaning cloth.
The ideal value for AD Blue is 32.5 %.
12 5562
