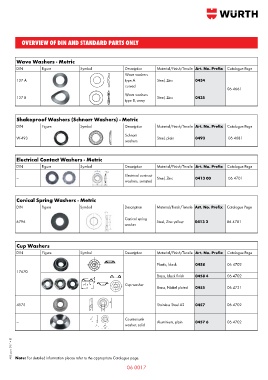

Page 384 - Wurth Total Catalogue

overview of din and standard parts only

Wave Washers - Metric
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page
Wave washers
137 A type A Steel, Zinc 0434
curved
06 4661
Wave washers
137 B Steel, Zinc 0435
type B, wavy

Shakeproof Washers (Schnorr Washers) - Metric
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page

Schnorr
W-493 Steel, plain 0493 06 4681
washers

Electrical Contact Washers - Metric
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page

Electrical contract
― Steel, Zinc 0413 00 06 4701
washers, serrated

Conical Spring Washers - Metric

DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page

Conical spring
6796 Steel, Zinc yellow 0413 2 06 4701
washer

Cup Washers
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page

Plastic, black 0458 06 4702
17670
Brass, black finish 0458 4 06 4702
Cup washer
Brass, Nickel plated 0455 06 4721

4575 d 2 Stainless Steel A2 0457 06 4702
h d 1

Countersunk
― Aluminium, plain 0457 6 06 4702
washer, solid

AUS. pub. 01/14 © Note: For detailed information please refer to the appropriate Catalogue page.

06 0017
