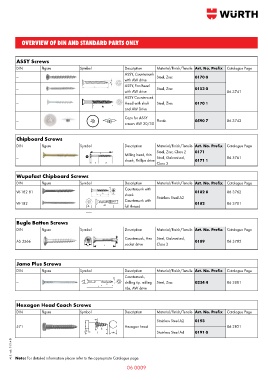

Page 380 - Wurth Total Catalogue

overview of din and standard parts only

ASSY Screws
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page
ASSY, Countersunk
— Steel, Zinc 0170 0
with AW drive
ASSY, Pan head
— Steel, Zinc 0153 0
with AW drive 06 3741
ASSY Countersunk
— Head with shaft Steel, Zinc 0170 1
and AW Drive

Caps for ASSY
— Plastic 0590 7 06 3742
screws AW 20/30

Chipboard Screws

DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page
Steel, Zinc, Class 2 0171
L Milling head, thin
― Steel, Galvanised, 06 3761
shank, Phillips drive 0171 1
Class 3

Wupofast Chipboard Screws
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page
Countersunk with
W-182 81 0182 8 06 3762
shank Stainless Steel A2
Countersunk with
d
W-182 0182 06 3781
dk d1 full thread

Bugle Batten Screws
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page
Countersunk, Hex Steel, Galvanised,
AS 3566 ø 0189 06 3782
h L socket drive Class 3

Jamo Plus Screws
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page
Countersunk,
— d k s t drilling tip. milling Steel, Zinc 0234 4 06 3801
ribs, AW drive

Hexagon Head Coach Screws

DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page
Stainless Steel A2 0193
571 Hexagon head 06 3821
sw Stainless Steel A4 0191 0

AUS. pub. 01/14 © Note: For detailed information please refer to the appropriate Catalogue page.

06 0009
