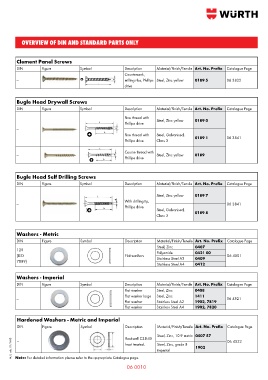

Page 381 - Wurth Total Catalogue

overview of din and standard parts only

Clement Panel Screws
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page
Countersunk,
— milling ribs, Phillips Steel, Zinc yellow 0189 5 06 3822
drive

Bugle Head Drywall Screws
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page

Fine thread with Steel, Zinc yellow 0189 0
Phillips drive
—
Fine thread with Steel, Galvanised, 0189 1 06 3841
Phillips drive Class 3

Course thread with
— Steel, Zinc yellow 0189
Phillips drive

Bugle Head Self Drilling Screws
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page

Steel, Zinc yellow 0189 7
With drilling tip,
— 06 3841
Phillips drive
Steel, Galvanised, 0189 8
Class 3

Washers - Metric
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page
Steel, Zinc 0407
125
(ISO Flat washers Polyamide 0421 00 06 4501
7089) Stainless Steel A2 0409
Stainless Steel A4 0412

Washers - Imperial
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page
Flat washer Steel, Zinc 0408
Flat washer large Steel, Zinc 1411
— 06 4521
Flat washer Stainless Steel A2 1902, 7819
Flat washer Stainless Steel A4 1902, 7820

Hardened Washers - Metric and Imperial
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page
Steel, Zinc, 10.9 metric 0407 57 06 4522
Rockwell C38-45
AUS. pub. 01/14 © Note: For detailed information please refer to the appropriate Catalogue page. Steel, Zinc, grade 8 1902
―
heat treated.
imperial

06 0010
