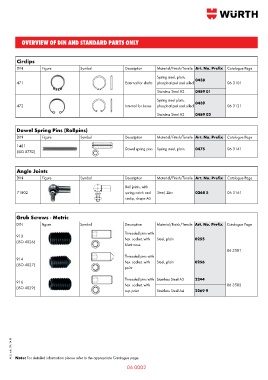

Page 377 - Wurth Total Catalogue

OVERVIEW OF DIN AND STANDARD PARTS ONLY

Circlips
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page

Spring steel, plain, 0438
471 External for shafts phosphatized and oiled 06 3101

Stainless Steel A2 0489 01
Spring steel plain, 0439
472 Internal for bores phosphatized and oiled 06 3121

Stainless Steel A2 0489 02

Dowel Spring Pins (Rollpins)
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page

1481
(ISO 8752) Dowel spring pins Spring steel, plain 0475 06 3141

Angle Joints
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page

Ball joints, with
71802 spring catch and Steel, Zinc 0268 5 06 3161
circlip, shape AS

Grub Screws - Metric
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page

Threaded pins with
913 hex. socket, with Steel, plain 0255
(ISO 4026)
blunt nose
06 3501
Threaded pins with
914 hex. socket, with Steel, plain 0256
(ISO 4027)
point

Threaded pins with Stainless Steel A2 2244
916 hex. socket, with 06 3502
(ISO 4029)
cup point Stainless Steel A4 2269 9

AUS. pub. 09/14 © Note: For detailed information please refer to the appropriate Catalogue page.
