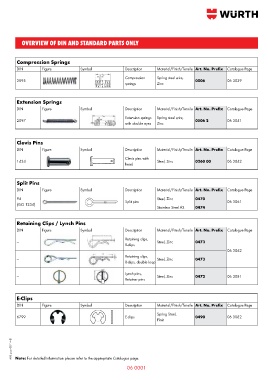

OVERVIEW OF DIN AND STANDARD PARTS ONLY

Compression Springs
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page

Compression Spring steel wire,
2095 0506 06 3039
springs Zinc

Extension Springs
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page

Extension springs Spring steel wire,
2097 0506 2 06 3041
with double eyes Zinc

Clevis Pins

DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page
Clevis pins with
1434 Steel, Zinc 0260 00 06 3042
head

Split Pins
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page
94 Steel, Zinc 0470
(ISO 1234) Split pins 06 3061
Stainless Steel A2 0474

Retaining Clips / Lynch Pins
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page
Retaining clips,
― Steel, Zinc 0473
R-clips
06 3062
Retaining clips,
― Steel, Zinc 0473
R-clips, double loop

Lynch pins,
― Steel, Zinc 0472 06 3081
Retainer pins

E-Clips
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page
Spring Steel,
6799 E-clips 0490 06 3082
Plain

AUS. pub. 09/14 © Note: For detailed information please refer to the appropriate Catalogue page.

06 0001
